GN-PTB20-W400





GN-PTB20-W400


General Features:

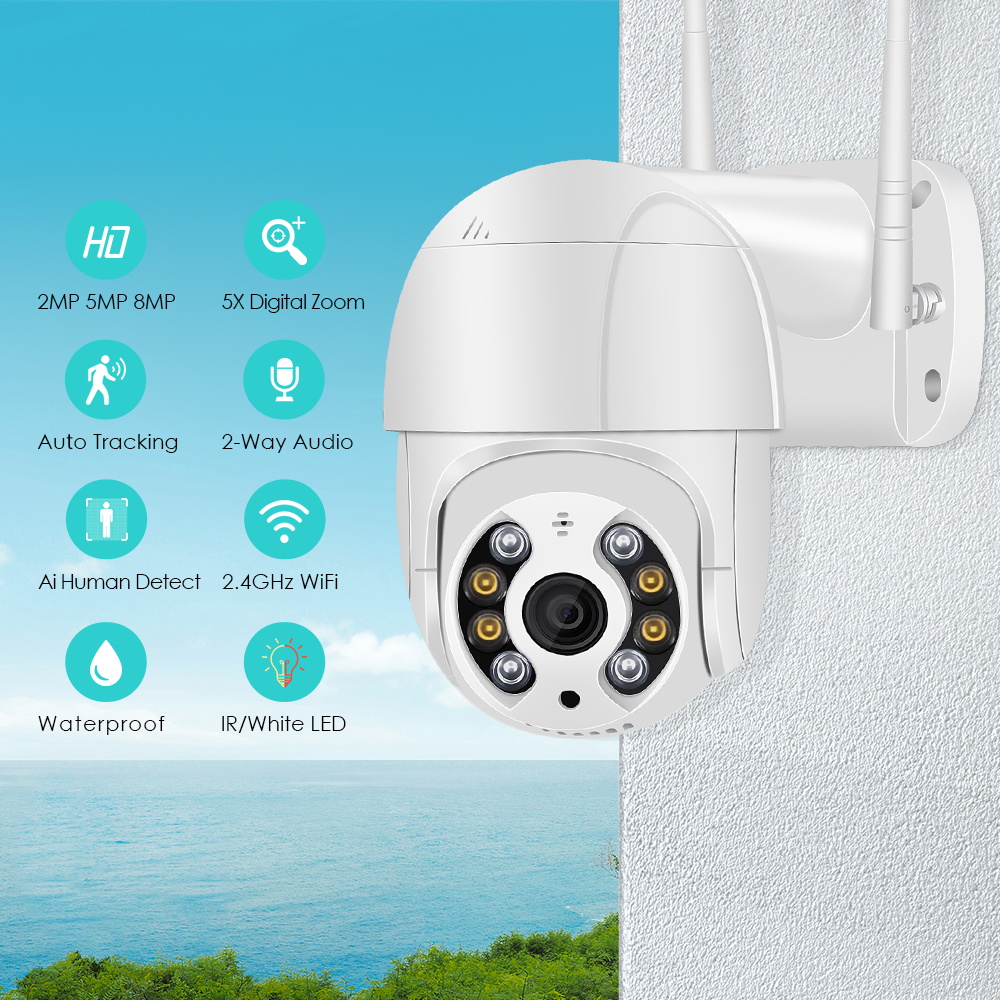

  Smart WiFi Pan-Tilt Camera
Resolution: 4MP
Lens: 3.6mm
IR Range: 25M
APP:  ICSEE
Outdoor IP65 Waterproof








Model #

GN-PTB20-W400

Camera

Image Sensor

1/3" CMOS Sensor

Resolution

4MP (2560*1440)

Video Coding

H.265

Image output

Main stream:4MP (2560*1440)@12fps, Sub-stream:640*360@12ps

Audio

Two Way Audio(AAC/G.711), with Buil-in Mic and Speaker

Lens

3.6mm Fixed Lens (F2.0)

APP (IOS/Android)

ICSee

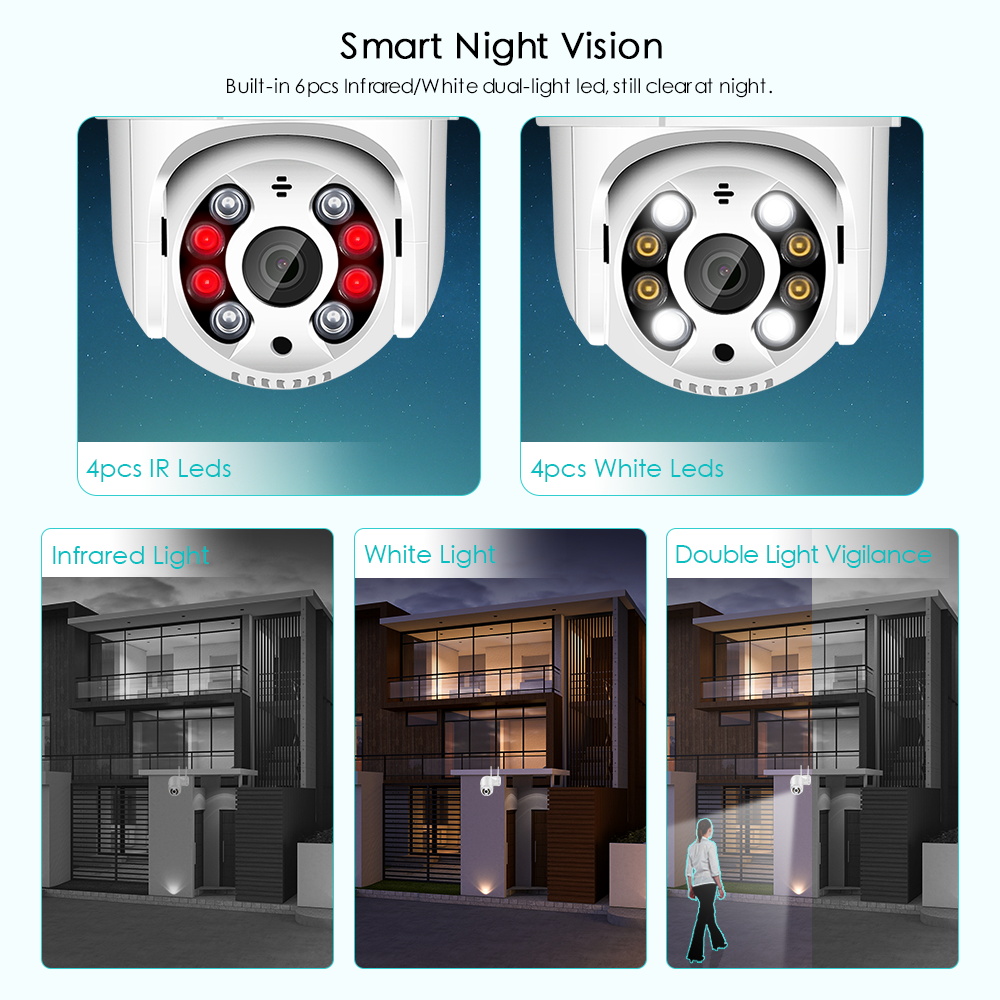

Dual Light LED

4pcs IR LED + 4pcs White Light LED

Night Vision Range

25Meters / 85ft (Infrared Night Vsion and FullColor Night Vision Auto)

Day & Night

IR-CUT Auto

Usable Illumination

0.1 Lux,  0Lux IR ON

Pan & Tilt Range

Pan: 350°,   Tilt: 90°

Alarm Notification

Motion Detection,Human Shape Detection, Auto Tracking

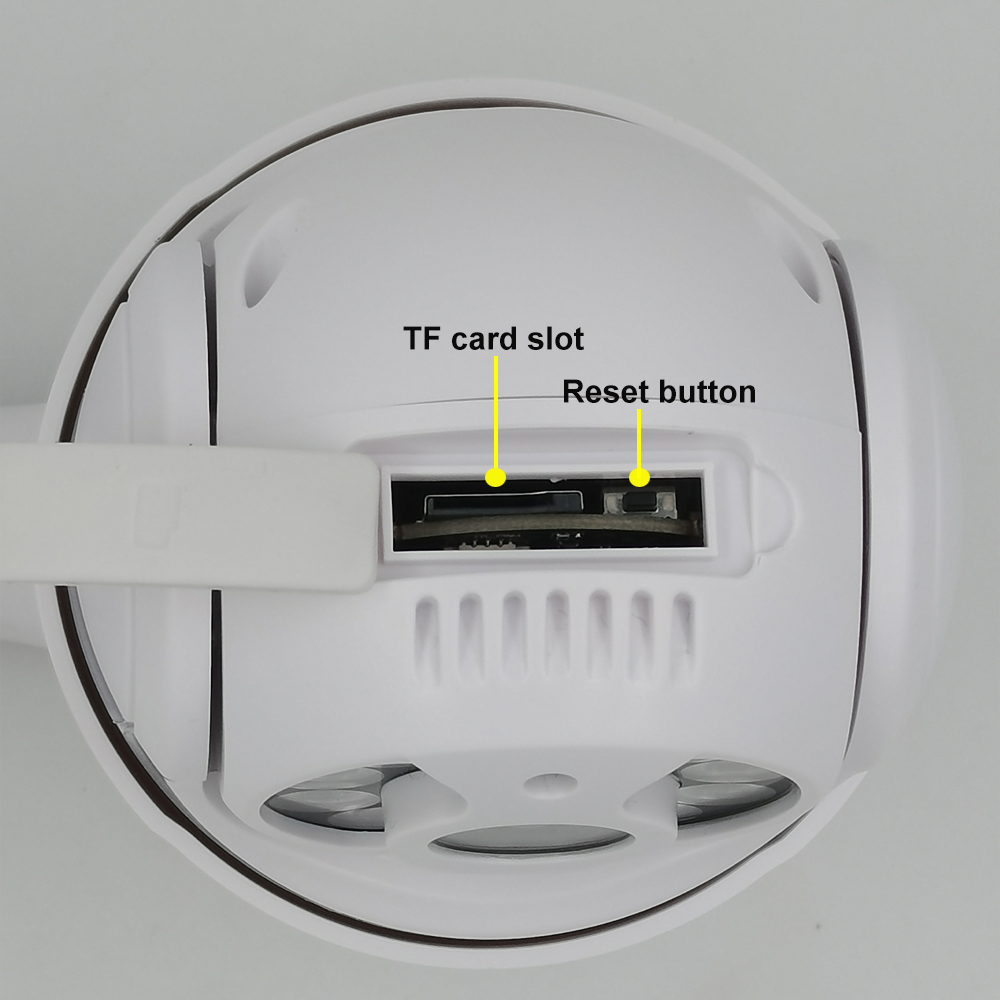

Video Storage

Cloud Storage and 1* Micro SD Card Slot Max 128G

WiFi Frequency

WIFIIEEE 802.11b/g/n2.4GHz,150Mbps

General

Housing Material

ABS Plastic housing, IP65 Waterproof

Power Consumption

< 5W

Working Condition

-10~+50@Humidity 10%~ 95%

Power Supply

DC12V

Package

1pc camera, 1pc User Manual, 1pc Screw Bag
