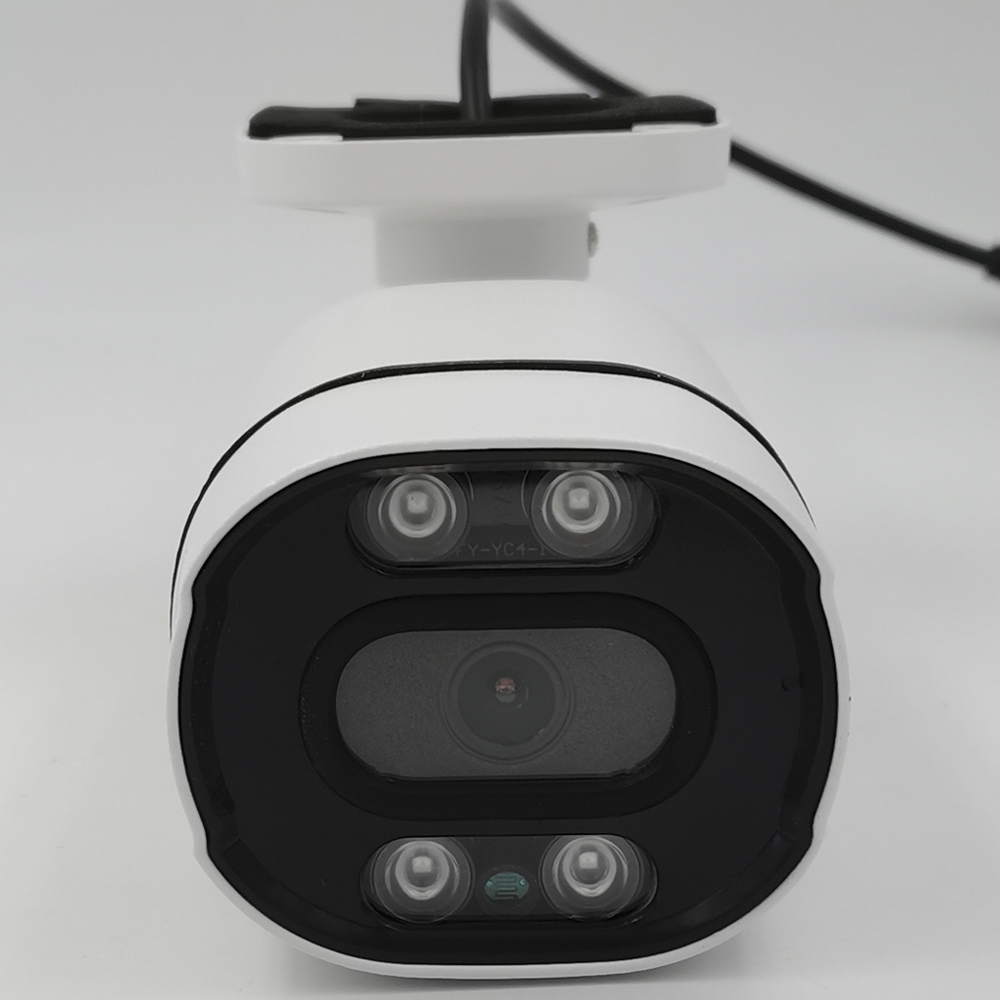

GN-HAU60 4IN1 Series |
|
| |
General Features： |
|
| |
HD 4 IN 1 Camera
Support AHD/TVI/CVI/CVBS
Resolution: 2MP/5MP/ 8MP
Al‐Alloy Housing, IP66
3.6mm Board Lens
4 Array IR LED, 25-30M IR Range
|
| |
|
| |
|
|
|
| |
|
|
|
|
Camera
|
Model NO.
|
GN-HAU60-FH200E
|
GN-HAU60-HD200
|
GN-HAU60-FH500
|
GN-HAU60-SY500
|
GN-HAU60-HT800
|
GN-HAU60-SY800
|
|
Image Sensor
|
F37
|
SONY IMX323
|
K05
|
SONY IMX335
|
C18
|
SONY IMX415
|
|
DSP
|
FH8536H
|
FH8536H
|
FH8538M
|
FH8538M
|
FH8538E
|
FH8556M
|
|
Image Resolution
|
1080P
|
1080P
|
5MP
|
5MP
|
5MP/8MP
|
8MP
|
|
Effective Pixels
|
1920(H)x1080(V)
|
1920(H)x1080(V)
|
2704(H)x1950(V)
|
2704(H)x1950(V)
|
2704(H)x1950(V)/ 3840(H)x2160(V)
|
3840(H)x2160(V)
|
|
TV System
|
PAL / NTSC
|
|
Electronic Shutter
|
1/25s~1/50,000s , 1/30s~1/60,000s
|
|
Sync System
|
Internal
|
|
Usable Illumination
|
0.01Lux
|
|
S/N Ratio
|
≥52dB
|
|
Scanning System
|
Progressive Scan
|
|
Video Output
|
4 IN 1, AHD/TVI/CVI: 1080P, CVBS 960H
|
|
Lens
|
Focus Length
|
3.6mm
|
|
Focus Control
|
Fixed
|
|
Lens Type
|
M12
|
|
Night
Vision
|
Infrared LED
|
4pcs Array IR-LED
|
|
Infrared Distance
|
25-30M
|
|
IR Status
|
Under 10 Lux by CDS
|
|
IR Power On
|
CDS Auto Control
|
|
Day/Night
|
Auto (ICR) / Color / B&W
|
|
Camera Features
|
OSD Menu
|
Yes, support OSD menu
|
|
OSD Menu Language
|
EN, CN, ES, FRA, IT, RU, PT, JPN, KR
|
|
White Balance
|
Auto/Manual
|
|
Gain Control
|
Auto
|
|
Noise Reduction
|
3D NR
|
|
WDR
|
D-WDR
|
|
Picture Adjustment
|
Yes
|
|
General
|
Camera Housing
|
Al-Alloy, IP66 Waterproof
|
|
Operation Temperature
|
-10℃ ~ +50℃ RH95% Max
|
|
Storage Temperature
|
-20℃ ~ +60℃ RH95% Max
|
|
Power Source
|
DC12V±10%, 1000mA
|
|
Dimension
|
182(W) x72(H) x60(D)mm
|
|
Gross Weight
|
0.45Kg (Volumn Weigh By Air is 0.6Kg)
|
|
|
