Chipset + System
|
Sensor + Processor
|
1/2.9" CMOS
|
|
Video
|
Resolution
|
5MP
|
|
Video Compression
|
H.264 / H.265
|
|
Alarm Detection
|
Motion Detection and Human Shape Detection
|
|
Picture Capture
|
Support
|
|
Lens
|
Camera lens
|
3.6mm
|
|
Night Vision
|
Infrared LED
|
4 Array IR LED, IR Range: 30M
|
|
Low illumination
|
0.1Lux @F2.0, 0 Lux with IR on
|
|
Day & Night
|
IR-CUT Fliter Auto
|
|
Audio
|
Coding standard
|
G.711
|
|
Audio
|
Two-Way Audio
|
|
Record management
|
Video file size
|
2.5GB-4.5GB/Day
|
|
Record Mode
|
Manual record, Motion Detection record, Scheduled record, Alarm record
|
|
Video storage
|
Video Storage by NVR, Video Storage by TF Card
|
|
Playback, back up
|
Support
|
|
Alarm trigger
|
Video Push、Alarm recording、screen shot capture ,sending Email
|
|
Network
|
Network Interface
|
1*RJ45 , 10/100M10-100 Base-T, self-adaptable Ethernet port
|
|
Mobile IOS/Android
|
APP: Tuya Smart
|
|
WiFi standard
|
802.11b/g/n
|
|
Network Protocol
|
Support TCP/IP、UDP/IP、HTTP、ICMP、FTP、EMAIL、TELNET, etc
|
|
Transmission mode
|
P2P、Smart Cloud Sever
|
|
WIFI connection
|
WiFi connection，AP Hotspot
|
|
Power Supply
|
Power
|
DC 12V/500mA
|
|
Power consumption
|
< 6W
|
|
General
|
Waterproof
|
Al-Alloy Housing, IP66 waterproof
|
|
Installation mode
|
Flat put、Wall mounted、Hoisting
|
|
Working Temperature
|
-10℃－＋55℃
|
|
Working humidity
|
10%－90%
|
|

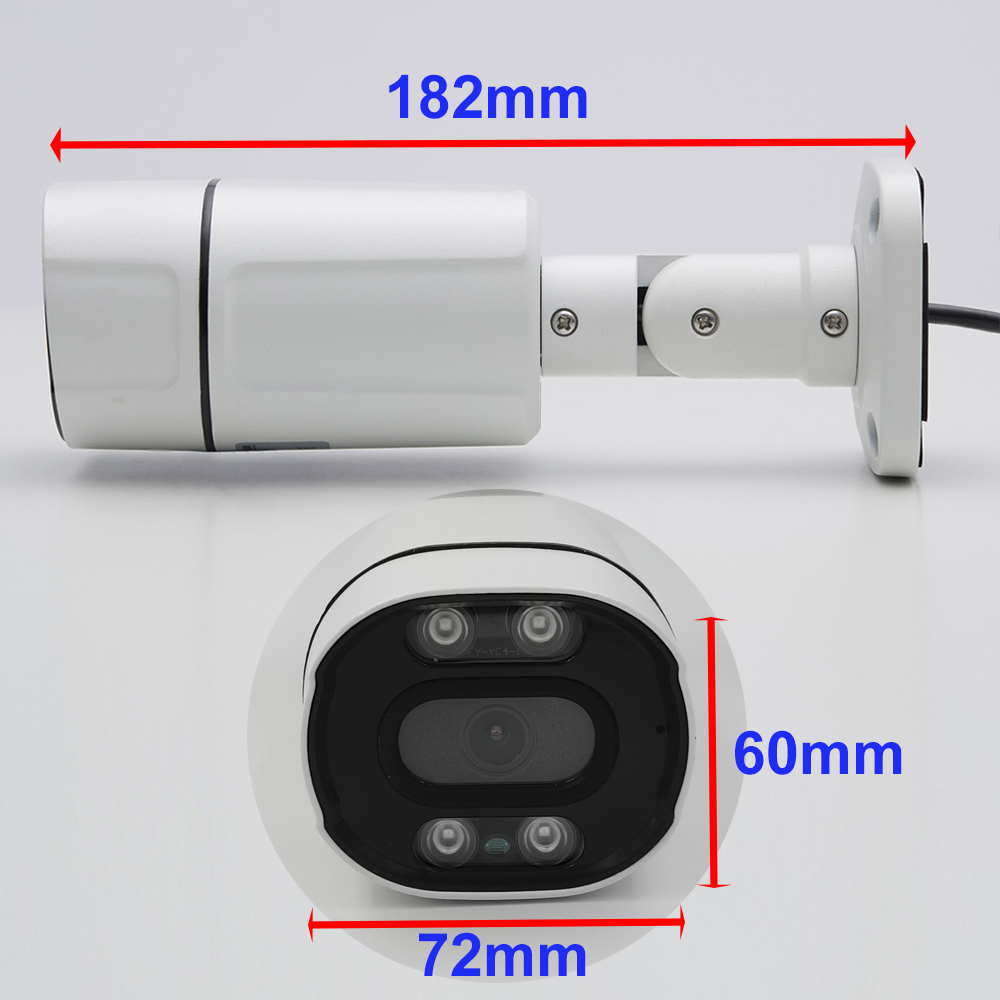

Product size
|
182(W) x72(H) x60(D)mm
|
