GN-PSX60-W500





GN-PSX60-W500


General Features:

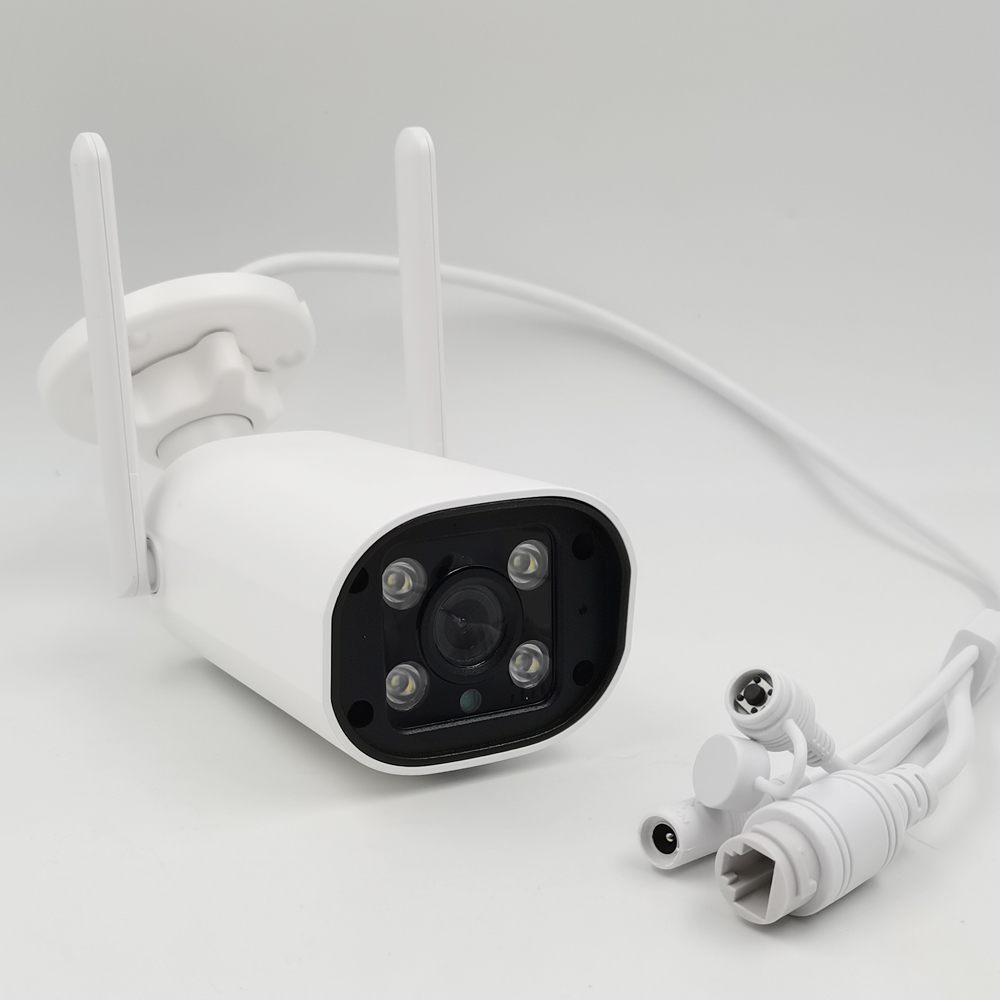

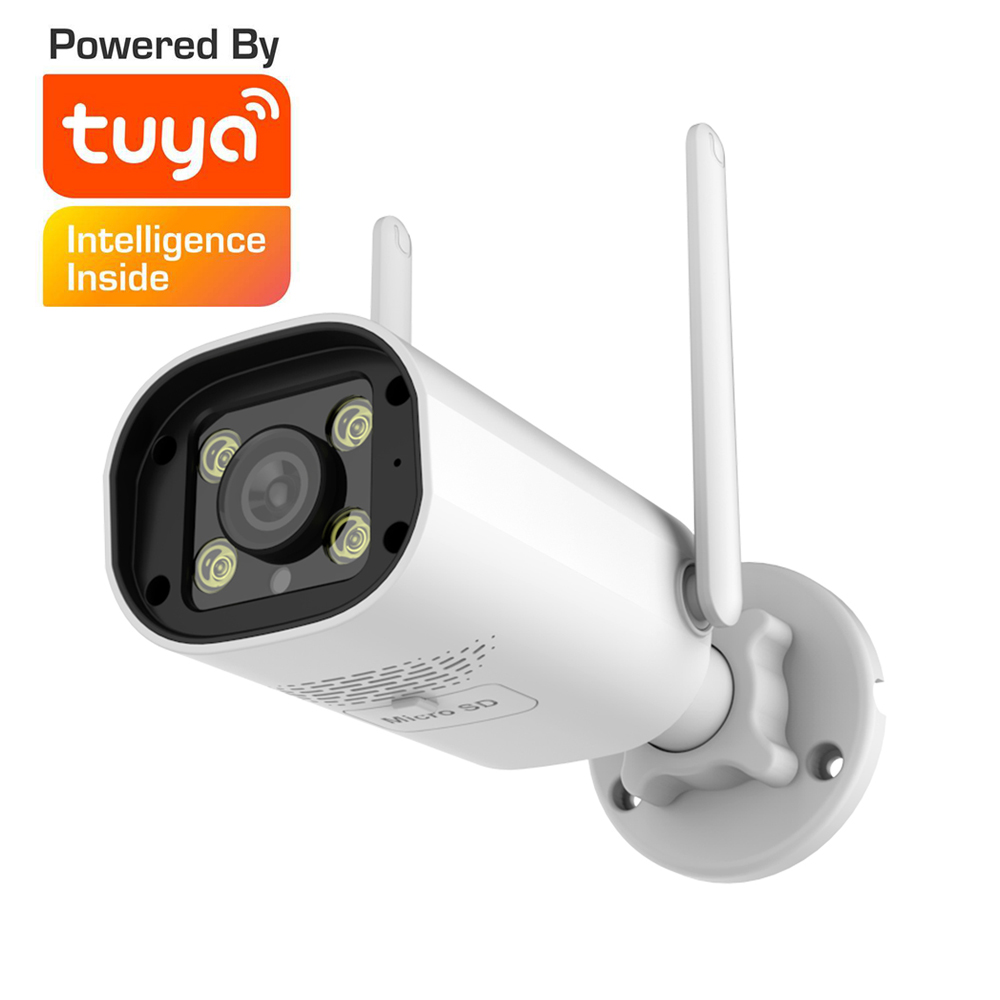

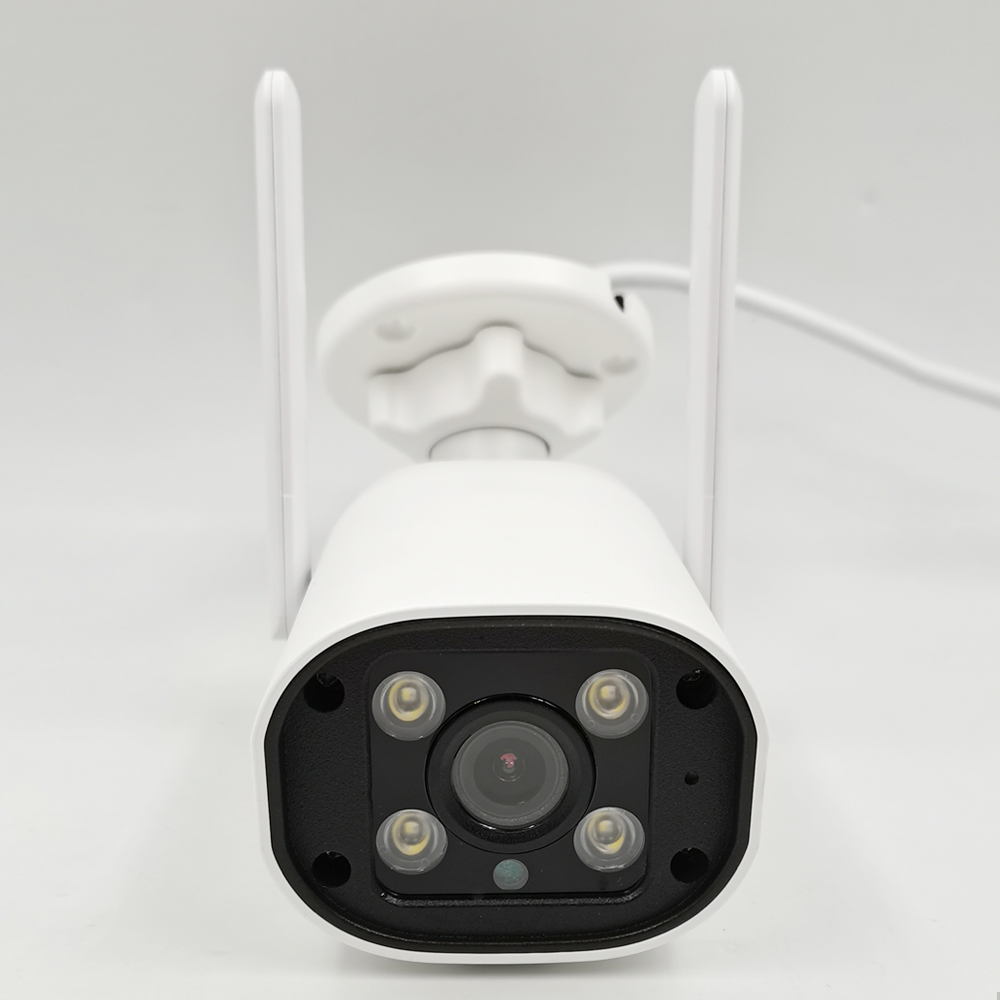

Smart WiFi Camera
Resolution:  5MP
Lens: 3.6mm
Two Way Audio
APP: Tuya Smart
Outdoor IP66 Waterproof






Chipset + System

Sensor + Processor

1/2.9" CMOS

Video

Resolution

5MP

Video Compression

H.264 / H.265

Alarm Detection

Motion Detection and Human Shape Detection

Picture Capture

Support

Lens

Camera lens

3.6mm

Night Vision

Infrared LED

Dual Light LED,  IR Range: 25M

Low illumination

0.1Lux @F2.0,   0 Lux with IR on

Day & Night

IR-CUT Fliter Auto

Audio

Coding standard

G.711

Audio

Two-Way Audio,  with Built-in Speaker and Microphone

Record management

Video file size

2.5GB-4.5GB/Day

Record Mode

Manual record, Motion Detection record, Scheduled record, Alarm record

Video storage

Video Storage by NVR, Video Storage by TF Card

Playback, back up

Support

Alarm trigger

Video PushAlarm recordingscreen shot capture ,sending Email

Network

Network Interface

1*RJ45 , 10/100M10-100 Base-T,  self-adaptable Ethernet port

Mobile IOS/Android

APP:  Tuya Smart

WiFi standard

802.11b/g/n

Network Protocol

Support TCP/IPUDP/IPHTTPICMPFTPEMAILTELNET, etc

Transmission mode

P2PSmart Cloud Sever

WIFI connection

WiFi connectionAP Hotspot

Power Supply

Power

DC 12V/500mA

Power consumption

< 6W

General

Waterproof

Metal+Plastic Housing, IP67 waterproof

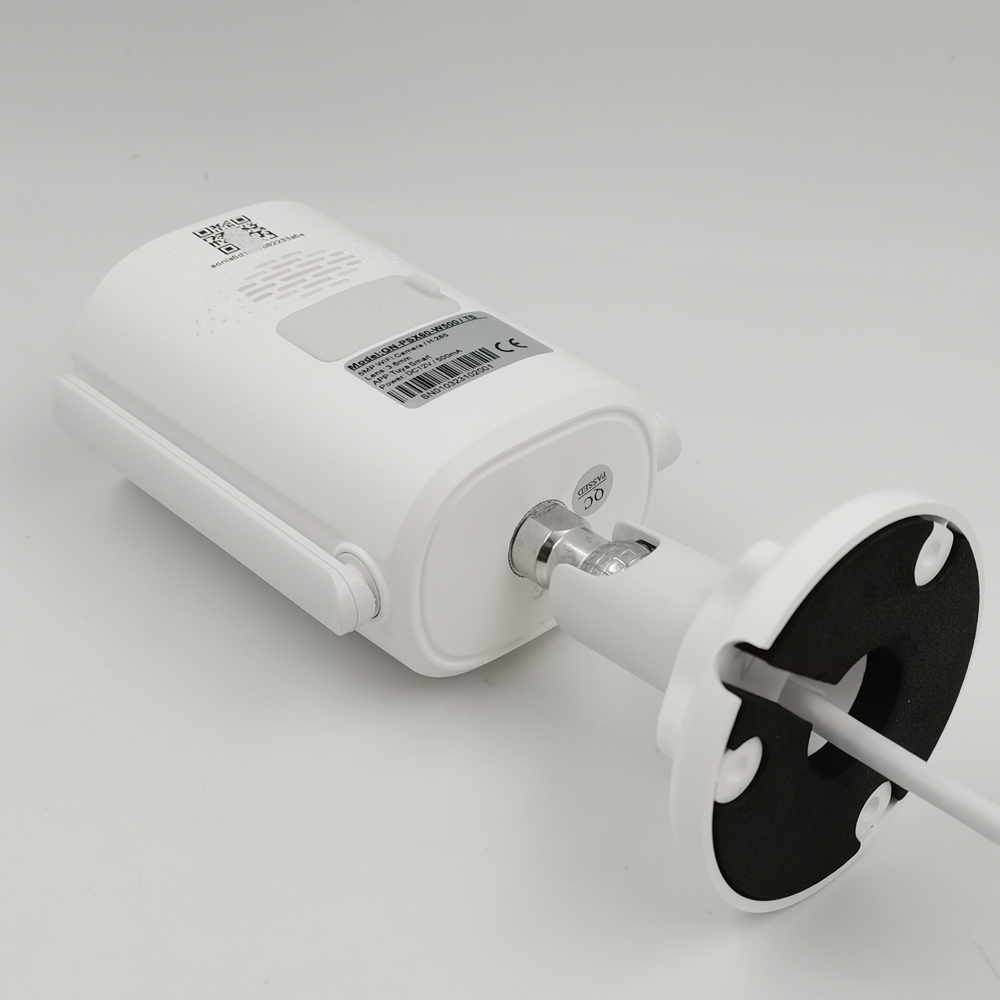

Installation mode

Flat putWall mountedHoisting

Working Temperature

-10℃-+55

Working humidity

10%90%

Product size

176.5(L) x68(W) x54.5(H)mm
