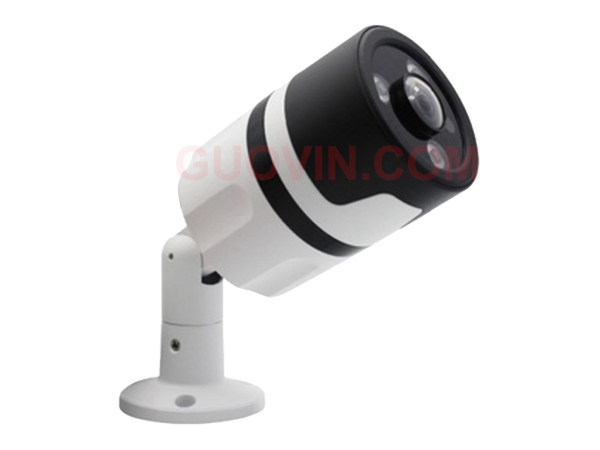

IPC-SKY60 Network Camera





IPC-SKY60 Network Camera


General Features:

Network FishEye Camera
Resolution: 1080P 5MP
FishEye 1.8mm Lens(1.44mm optional)
3pcs Array IR LED, 25M IR Range
Al-Alloy Housing, IP66






Model NO:

IPC-SKY60-S200M

IPC-SKY60-ST200M

IPC-SKY60-E500M

Camera

Image CMOS Sensor

1/2.9" IMX323

1/2.8" Starvis
IMX307

1/2.8" IMX335

DSP

HI3516E

HI3516E

Hi3516E V300

Resolution

2.0M Pixel

2.0M Pixel

5.0M Pixel

Effective Pixels

1920(H)*1080(V)

2592(H)×1944(V)

Electronic Shutter

1/50-1/10000Sec

Motion Detection

Support

Scanning System

Progressive

Sync System

External

Privacy  Masking

Support, Up to 4 areas

S/N Ratio

50dB

52dB

52dB

White Balance

Auto/Manual

Gain Control

Auto/Manual

Digital Noise Reduction

Support 2D/3D

Wide Dynamic Range

D-WDR

Recording Mode

NVR/NAS/CMS/Web

Video and Audio

Video Compression

H.265+

Video Output

Main stream:
1920*1080@20fps

Main stream:
1920*1080@20fps

Main stream:
2704×1950@20fps

Audio Processing

G.711,support bidrectional talk,audio&video synchronization

Audio interface

1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone

Alarm I/O

1/0 (support alarm input and video link to background)

Lens

Focal Length

FishEye Lens 1.8mm  (1.44mm is optional)

Focus Control

Fixed

Lens Type

M12

Lens Pixels

5.0M Pixels

Auto Iris Support

N/A

Night Vision

Infrared LED

3pcs Array IR-LED, 25M IR Range

Low illumination

0.01Lux @F1.4
0 Lux with IR on

0.001Lux @F1.4
0 Lux with IR on

0.01Lux @F1.4
0 Lux with IR on

Day & Night

Support IR-CUT

Network

Ethernet

RJ-45 (10/100Base-T)1*RJ45 10/100M adaptive Ethernet port

Network Protocol

Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc

ONVIF

Support ONVIF

Smart Phone

Support iPhone, iPad, Android and Windows

Browser

 Support IE, Chrome, Firefox, Safari

Sotware

Support iCloud,  XMeye App(iOSAndroid),  CMS software, IE Login

POE

48V POE is optional

General

Housing

Al-Alloy, White+Black Color Housing

Power Supply

DC12V/400mA input

Working Temperature

  -10℃~50

Weatherproof Std.

Support Waterproof, IP66

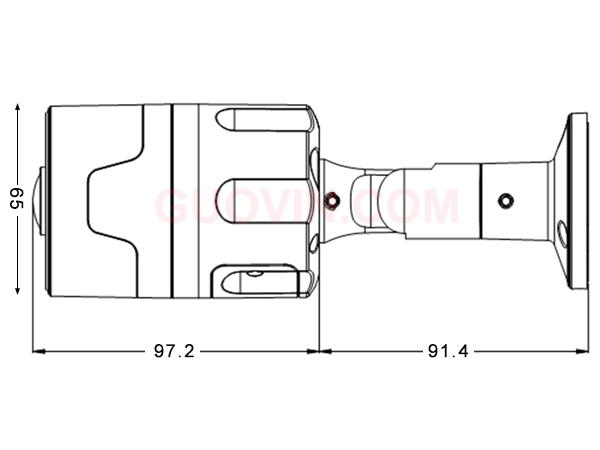

Dimension

188.6(W) x65(H) x65(D)mm

Gross Weight

0.4Kg
