GN-KIT8-ES60U12





GN-KIT8-ES60U12


General Features:

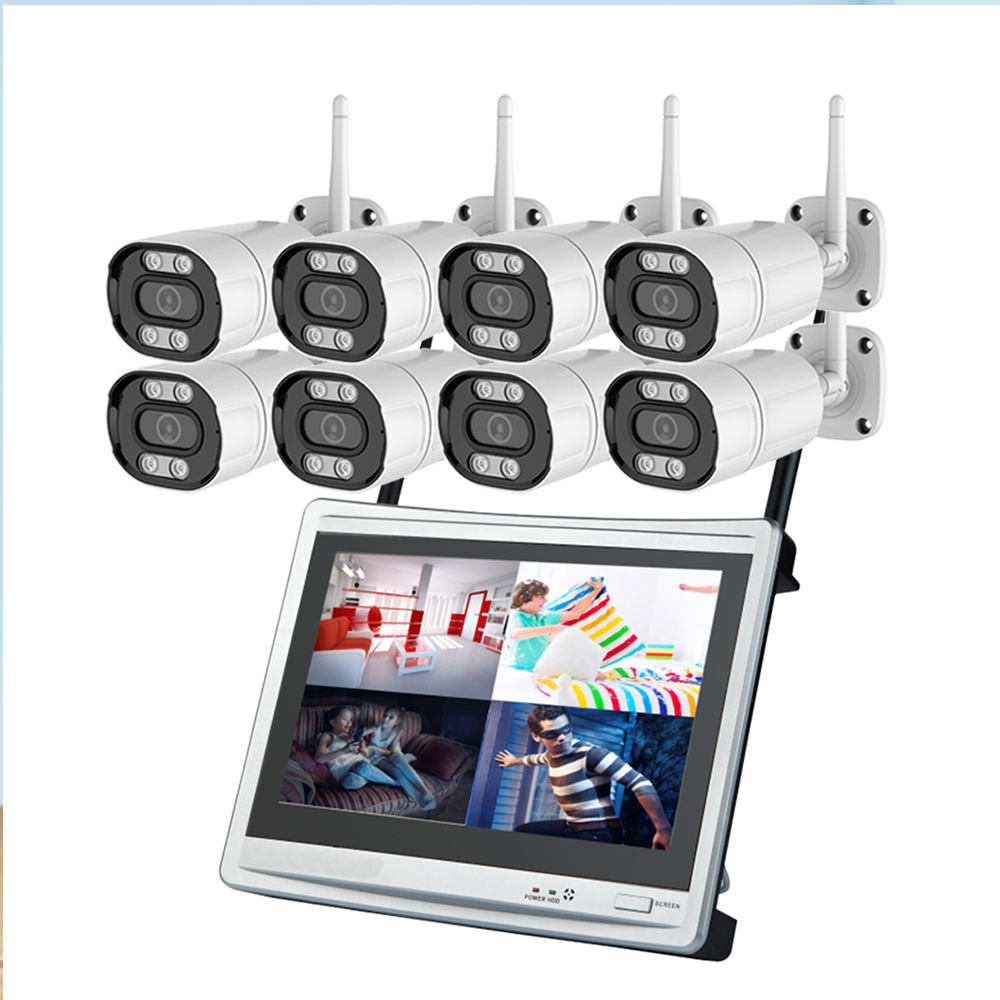

8CH WiFi NVR Kit
• 10CH 3MP WiFi NVR
   APP: EseeCloud

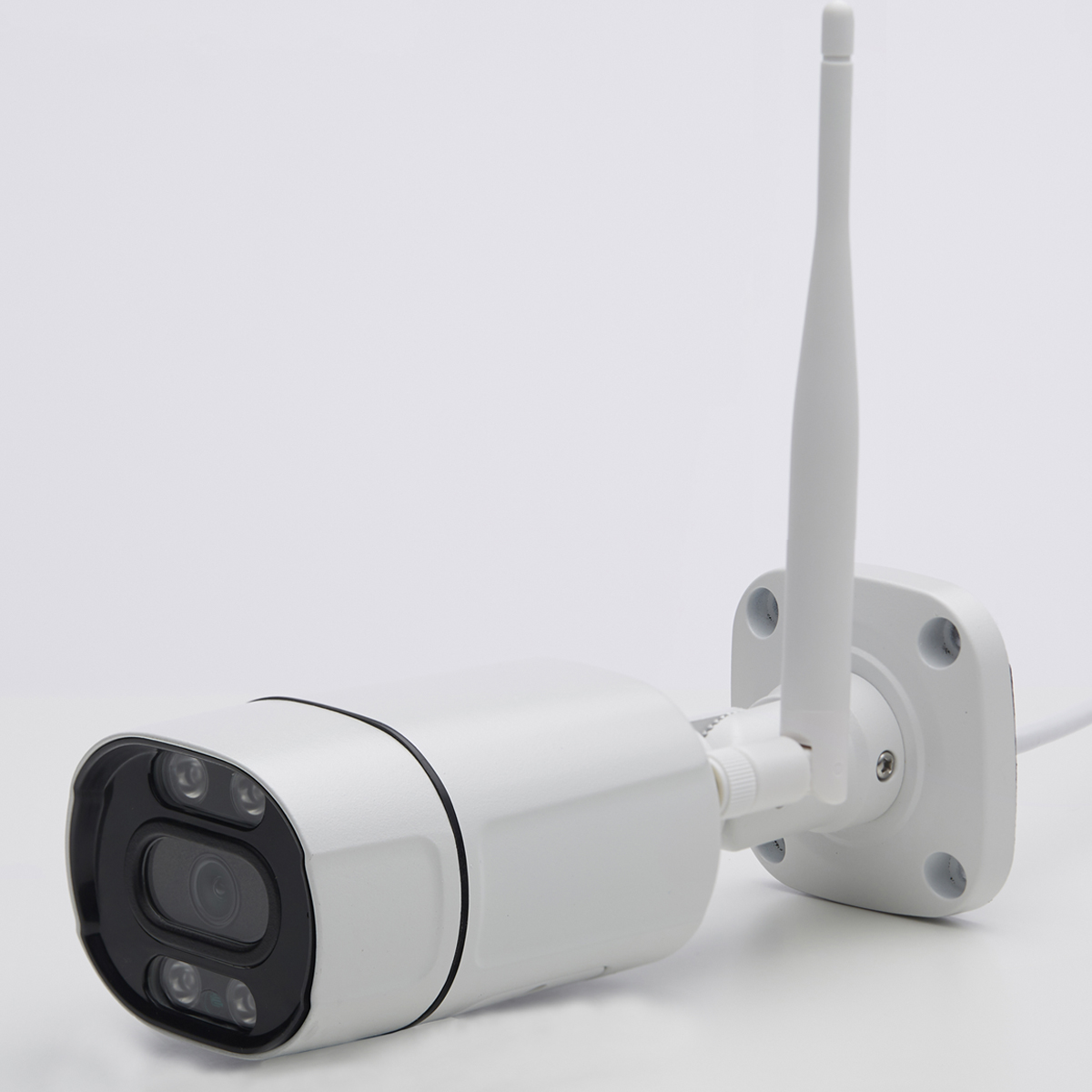

• 3MP WiFi Camera
   Al-Alloy Camera Housing, IP66
   3.6mm Lens, 25M IR Range
• Plug-play, Auto connection

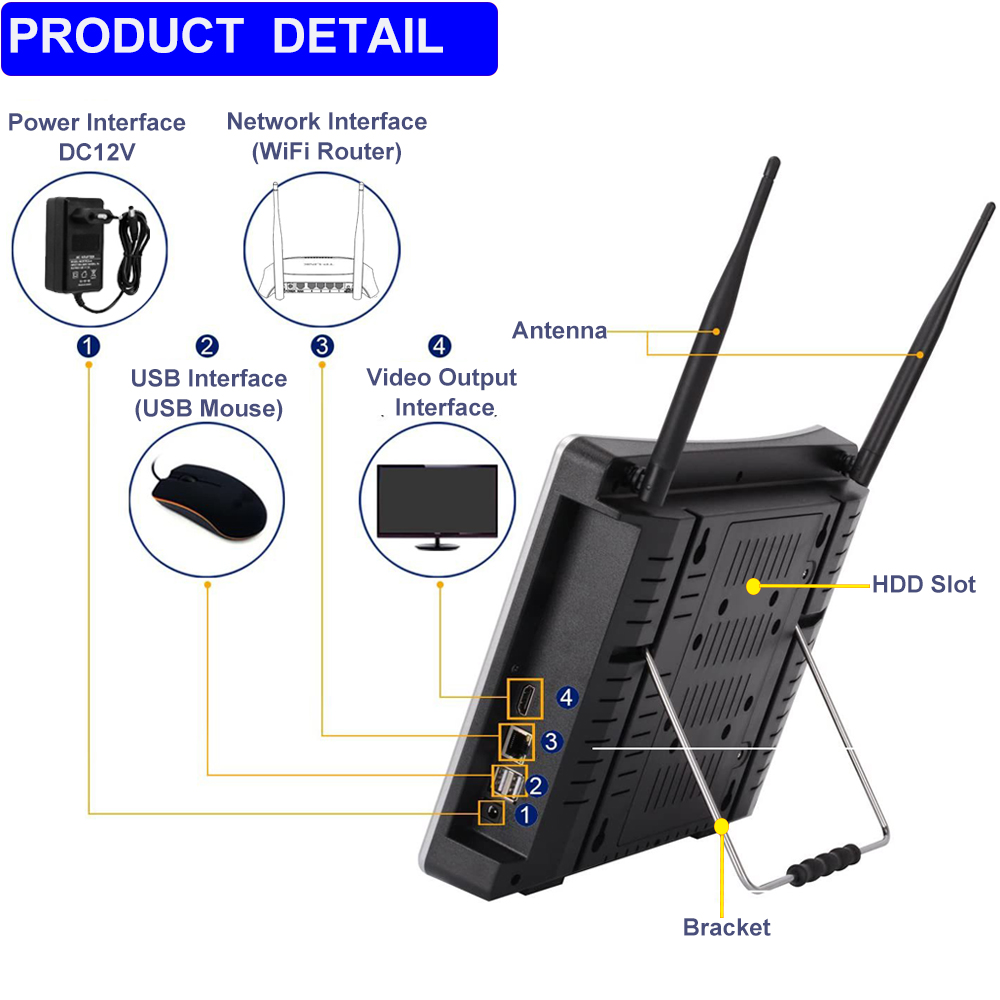

WiFi NVR Main Spec

Operating System

Embedded Linux

Display

12 inch LCD Display

Preview

1/4/10

Video input (IP)

Max 10CH 3MP

Video compression

 H.264 & H.265+

Recording resolution

5MP/3MP/1080P/960P/720P

Audio compression

G.711A

Motion detection

Support

Recording mode

Manual>Alarm>Dynamic Detection>Timing

Search mode

Search by Time/Calendar/Event/Channel

Record storage

HDDNetwork

Backup mode

Network backup, USB hard disk, USB burner, SATA burner

Video output

1CH VGA,  1CH HDMI (2K) output

Network interface

1*RJ45 10M/100M Adaptive Ethernet port + 8CH WiFi

USB interface

2*USB2.0 ports

HDD

1* SATA(Max 6TB )

Power supply

12V/2A

Work environment

Temperature:0-55 , Humidity:10%90%RH

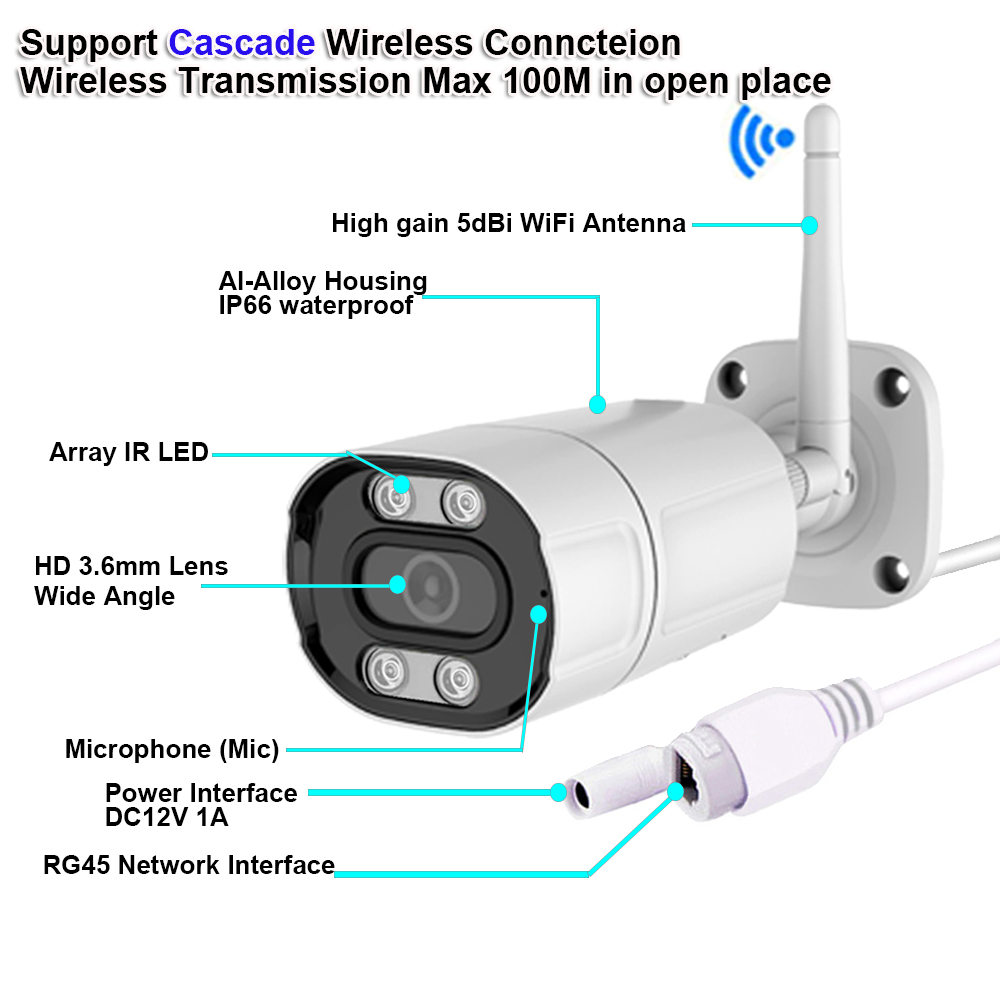

WiFi IP Camera Main Spec

Resolution

3MP  2304(H)*1296(V)

Video compression

 H.264 & H.265+

Lens

3.6mm (2.8mm is optional)

Stream parameters

Dual stream 2304*1296@ 15fps 720x576 @ 15fps

Low illumination

Color: 0.1 Lux;  B/W: 0.01 Lux

Infrared lamp

Array IR LED * 3pcs

Infrared distance

25M

Day&night

IR cut filter with auto switch

Interface

1 RJ45 10M / 100M adaptive Ethernet port

1 SMA interface, 802.11b / g / n / protocol

Power supply

DC12V/1A

Power consumption

6W

Waterproof leve

IP66
