GN-VBK70- 4 IN 1 Series |
|
| |
General Features： |
|
| |

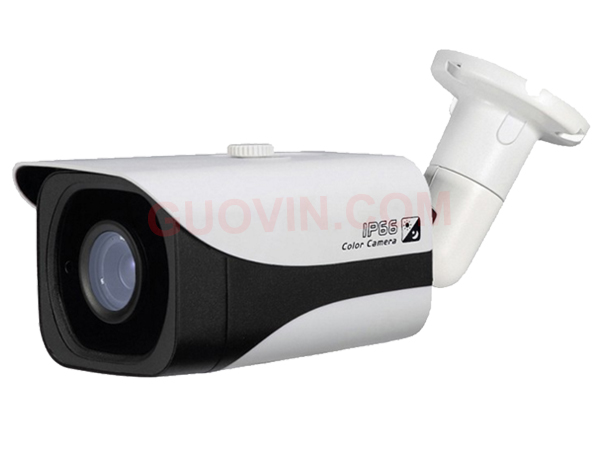

HD 4 IN 1 Bullet Zoom Camera
Support AHD/TVI/CVI/CVBS
Resolution: 2MP / 5MP / 8MP
Al-Alloy housing, IP66
2.8-12mm Manual Zoom Lens
4pcs Array IR LED, 40M Range

|
| |
|
| |
|
|
|
| |
|
|
|
|
Camera
|
Model NO.
|
GN-VBK70 -XM200
|
GN-VBK70 -FH200E
|
GN-VBK70 -HD200
|
GN-VBK70 -FH500
|
GN-VBK70 -SY500
|
GN-VBK70 -SY800
|
|
Image Sensor
|
SC2235P
(1/2.9" CMOS)
|
F37
(1/2.9" CMOS)
|
SONY IMX323
(1/2.9" CMOS)
|
K05
(1/2.5" CMOS)
|
SONY IMX326
(1/2.8" CMOS)
|
SONY 415
(1/2.8" CMOS)
|
|
DSP
|
XM330
|
FH8536H
|
FH8536E
|
FH8538M
|
FH8538M
|
FH8556
|
|
Image Resolution
|
1080P
|
1080P
|
1080P
|
5MP
|
5MP
|
8MP
|
|
Effective Pixels
|
1920(H)x1080(V)
|
1920(H)x1080(V)
|
1920(H)x1080(V)
|
2704(H)x1950(V)
|
2704(H)x1950(V)
|
3840(H)x2160(V)
|
|
TV System
|
PAL / NTSC
|
|
Electronic Shutter
|
1/25s~1/50,000s , 1/30s~1/60,000s
|
|
Sync System
|
Internal
|
|
Usable Illumination
|
0.3Lux
|
0.3Lux
|
0.01Lux
|
0.3Lux
|
0.01Lux
|
0.1Lux
|
|
S/N Ratio
|
≥50dB
|
≥50dB
|
≥52dB
|
≥50dB
|
≥52dB
|
≥52dB
|
|
Scanning System
|
Progressive Scan
|
|
Video Output
|
4 IN 1, AHD/TVI/CVI/CVBS
|
|
Lens
|
Focus Length
|
2.8-12mm
|
|
Focus Control
|
Zoom
|
|
Lens Type
|
Manual
|
|
Night
Vision
|
Infrared LED
|
4pcs 35μ Array IR LED
|
|
Infrared Distance
|
40M
|
|
IR Status
|
Under 10 Lux by CDS
|
|
IR Power On
|
CDS Auto Control
|
|
Day/Night
|
Auto (ICR) / Color / B&W
|
|
Camera Features
|
OSD Menu
|
Yes
|
|
OSD Menu Language
|
EN, CN, ES, FRA, IT, RU, PT, JP, KR
|
|
White Balance
|
Auto/Manual
|
Auto/Manual
|
Auto/Manual
|
Auto/Manual
|
Auto/Manual
|
Auto/Manual
|
|
Gain Control
|
Auto
|
Auto
|
Auto
|
Auto
|
Auto
|
Auto
|
|
Noise Reduction
|
3D NR
|
3D NR
|
3D NR
|
3D NR
|
3D NR
|
3D NR
|
|
WDR
|
DWDR
|
DWDR
|
DWDR
|
DWDR
|
DWDR
|
DWDR
|
|
Picture Adjustment
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|
General
|
Camera Housing
|
Al-Alloy Housing, IP66
|
|
Operation Temperature
|
-10℃ ~ +50℃ RH95% Max
|
|
Storage Temperature
|
-20℃ ~ +60℃ RH95% Max
|
|
Power Source
|
DC12V±10%, 800mA
|
|

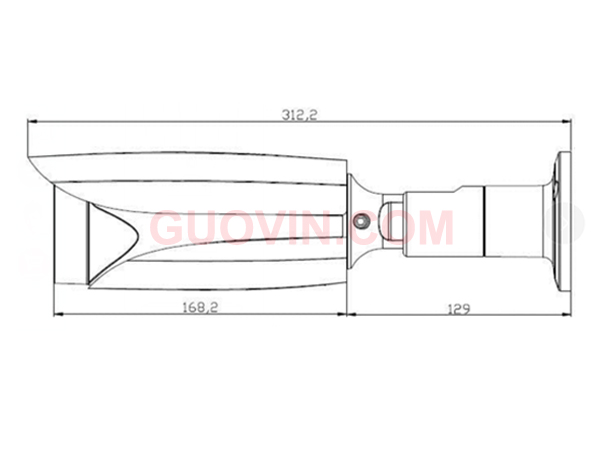

Dimension
|
312(W) x85(H) x85(D)mm
|
|
Gross Weight
|
1.0Kg
|

|
|
