System
|
Main processor
|
XM8536D
|
|
Operating System
|
Embedded Linux
|
|
System resources
|
Simultaneous multi-channel real-time recording, playback, network operation, USB backup
|
|
Interface
|
Operator interface
|
16-bit true color graphic menu operation interface, support mouse operation
|
|
Preview
|
1/2/4/9
|
|
Video
|
Video input (IP)
|
9*4K / 8Mp
|
|
Video compression
|
H.265AI/H.265+(compatible H.265/H.264)
|
|
Display quality
|
Max:4K
|
|
Playback quality
|
4K/5M/4M/3M/1080P
|
|
Decode
|
1*4K/1*5M/1*4M/2*3M/3*1080P
|
|
human shape / Face
|
Support(depend on camera)
|
|
Audio
|
Audio compression
|
G.711A
|
|
Intercom
|
support
|
|
Record &
Play back
|
Recording mode
|
Manual>Alarm>Dynamic Detection>Timing
|
|
Local payback
|
1*4K/1*5M/1*4M/2*3M/3*1080P
|
|
Search mode
|
Search by Time/Calendar/Event/Channel/Face
|
|
Record storage
|
HDD、Network、Cloud
|
|
Backup mode
|
Network backup, USB hard disk, USB burner, SATA burner
|
|

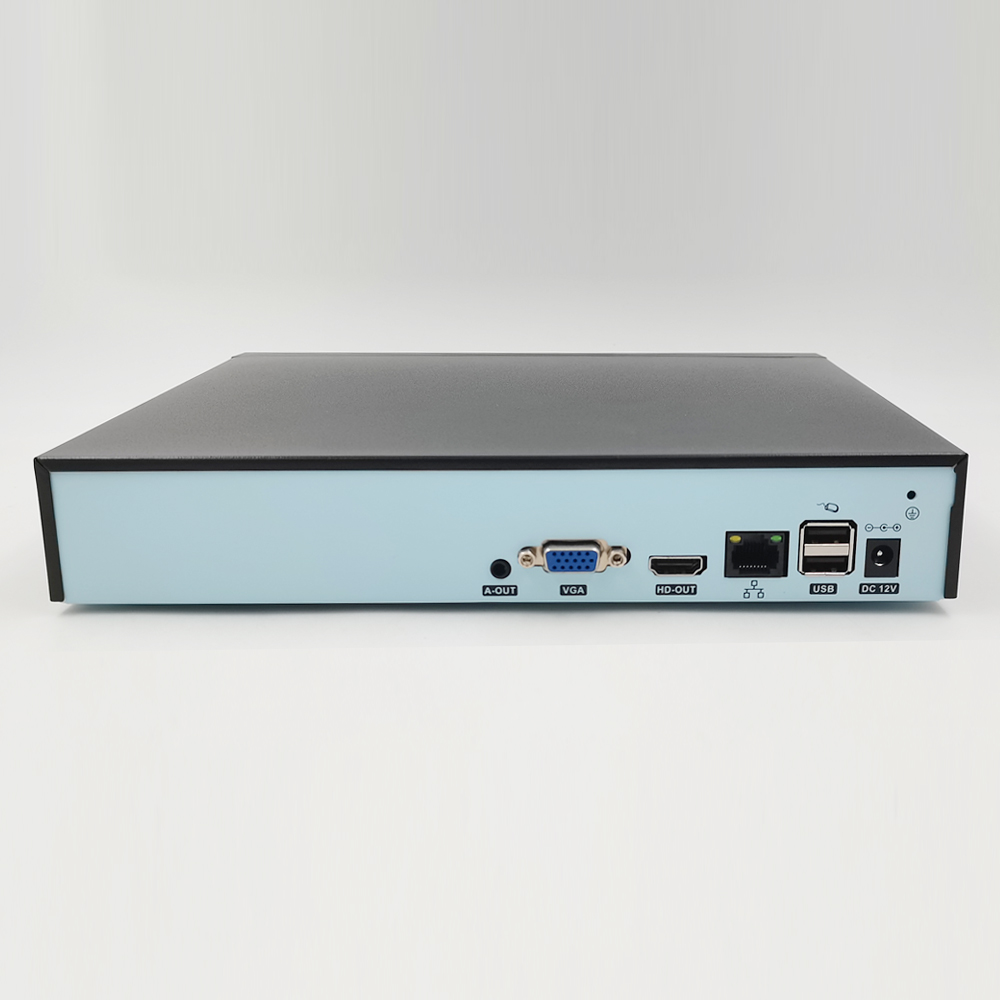

External interface
|
Video output
|
1ch VGA，1ch HDMI HD output
|
|
Audio I/O
|
1/1（3.5mm）
|
|
Alarm I/O
|
0/0
|
|
Network interface
|
1*RJ45 10M/100M Adaptive Ethernet port
|
|
USB interface
|
2*USB2.0 ports(one USB extension interface is reserved)
|
|
HDD
|
1*SATA(Up to 14TB for each disk)
|
|
ESATA
|
No
|
|
Other
|
ONVIF
|
Support
|
|
Power supply
|
12V/2A
|
|
Power Consumption
|
<10W(Without HDD)
|
|
Work environment
|
Temperature:0℃-＋55℃ , Humidity:10%－90%RH
|
