GN-XM2216





GN-XM2216


General Features:

●16CH 8MP H.265 NVR
●1*SATA, Max 8TB
●XMeye, P2P Cloud
●1CH HDMI output






System

Main processor

XM8536D

Operating System

Embedded Linux

System resources

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

Interface

Operator interface

16-bit true color graphic menu operation interface, support mouse operation

Preview

1/2/4/9/16

Video

Video input (IP)

16*4K / 8Mp

Video compression

H.265AI/H.265+(compatible H.265/H.264)

Display quality

Max:4K

Playback quality

4K/5M/4M/3M/1080P

Decode

1*4K/1*5M/1*4M/2*3M/3*1080P

human shape / Face

 Support(depend on camera)

Audio

Audio compression

G.711A

Intercom

support

Record &
Play back

Recording mode

Manual>Alarm>Dynamic Detection>Timing

Local payback

1*4K/1*5M/1*4M/2*3M/3*1080P

Search mode

Search by Time/Calendar/Event/Channel/Face

Record storage

HDDNetworkCloud

Backup mode

Network backup, USB hard disk, USB burner, SATA burner

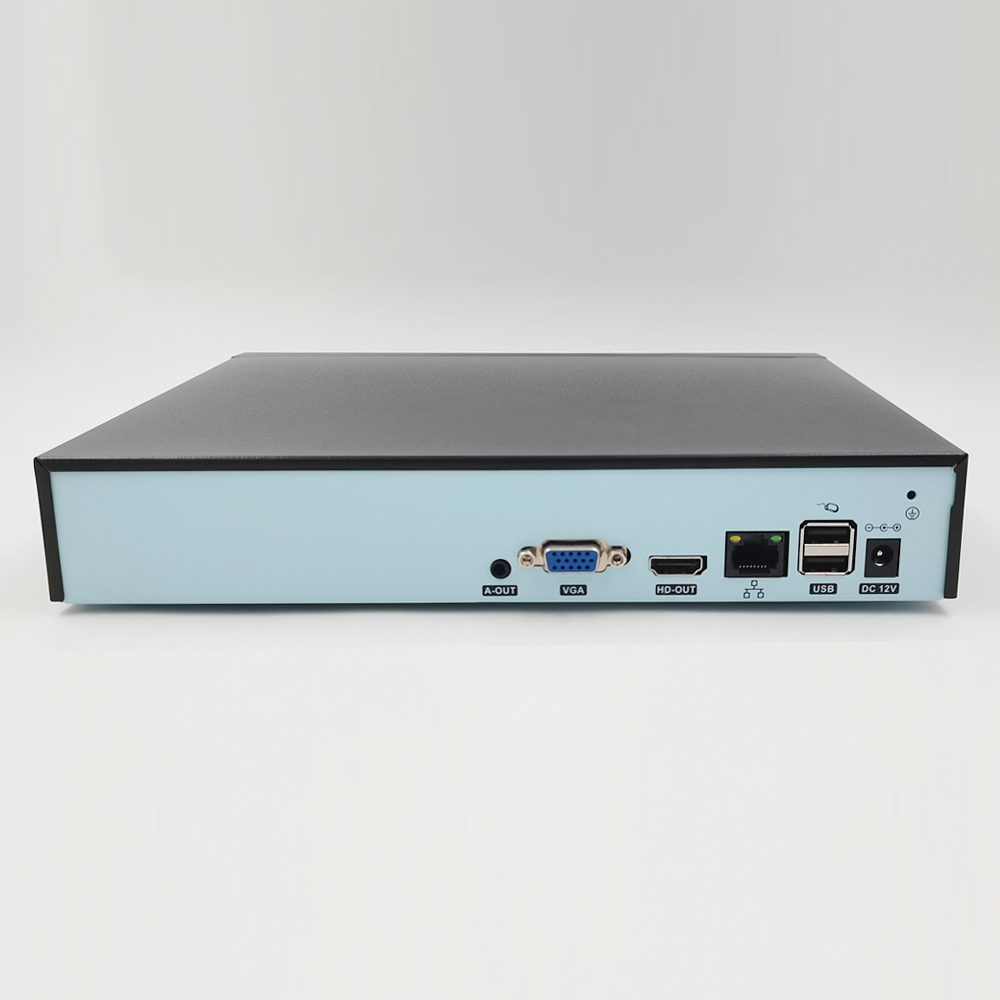

External interface

Video output

1ch VGA1ch HDMI HD output

Audio I/O

1/13.5mm

Alarm I/O

0/0

Network interface

1*RJ45 10M/100M Adaptive Ethernet port

USB interface

2*USB2.0 ports(one USB extension interface is reserved)

HDD

1*SATA(Up to 14TB for each disk)

ESATA

No

Other

ONVIF

Support

Power supply

12V/2A

Power Consumption

<10W(Without HDD)

Work environment

Temperature:0-55 , Humidity:10%90%RH
