GN-HAU60-RS50P |
|
| |
General Features： |
|
| |
PoE IP Camera
Resolution: 5MP
Lens: 3.6mm (2.8mm Optional)
Smart Day/Night
Infrared Night Range: 30M
Support Onvif Protocol
Metal Housing,IP66 Waterproof
|
| |
|
| |
|
|
|
| |
|
|
|
|
Model No.
|
GN-HAU60-RS50P
|
|
CMOS Sensor + DSP
|
1/3" CMOS + FH8556V200
|
|
Resolution
|
5MP(2880*1624)@25fps, Default is 5MP
|
|
Video Compression
|
H.265
|
|
Video Output
|
Main stream:
5MP(2880*1624)@25fps, 4MP(2560*1440)@25fps
Sub sream: 720P(1280*720)/448P(800*448)/D1(704*576)
|
|
Recording Mode
|
NVR / CMS / Web
|
|
Focal Length
|
3.6mm (2.8mm is optional)
|
|
Infrared LED and Range
|
Array IR LED*4pcs, IR Range: 30M
|
|
Low illumination
|
0.1Lux @F2.0, 0 Lux with IR-LED on
|
|
Day & Night
|
IR-CUT Auto
|
|
Detection Alarm
|
Support Motion Detection and Human Shape Detection
|
|
Noise Reduction and WDR
|
Support 3D NR and D-WDR
|
|
Other Function
|
Support Privacy Shelter,Mirror,BLC, White Balance, OSD, Restart
|
|
Ethernet Port
|
1*RJ45 10/100M adaptive Ethernet port, Support RTSP/DHCP
|
|
Access Protocol
|
Multi Protocol, Onvif, Private Protocol, P2P, CGI
|
|
Client
|
IOS, Android, Windows
|
|
POE
|
Built-in 48V PoE
|
|
Audio
|
Built-in Microphone(one way audio)
|
|
Waterproof Standard
|
Aluminium Metal Housing, IP66 Waterproof
|
|
Power Supply
|
DC12V/500mA & PoE
|
|
Working Temperature
|
-10℃～50℃
|
|

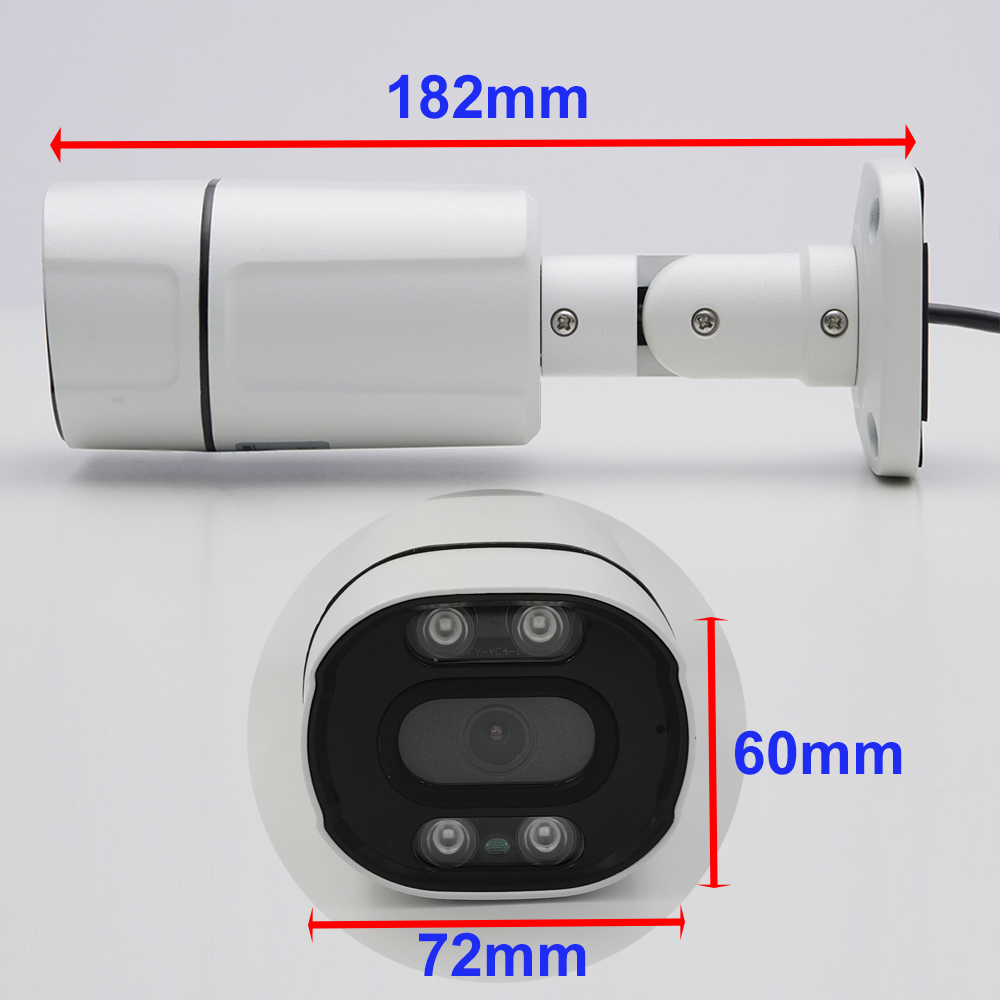

Camera Dimension
|
182(W) x72(H) x60(D)mm
|
|
Weight
|
0.45Kg
|

|
|
