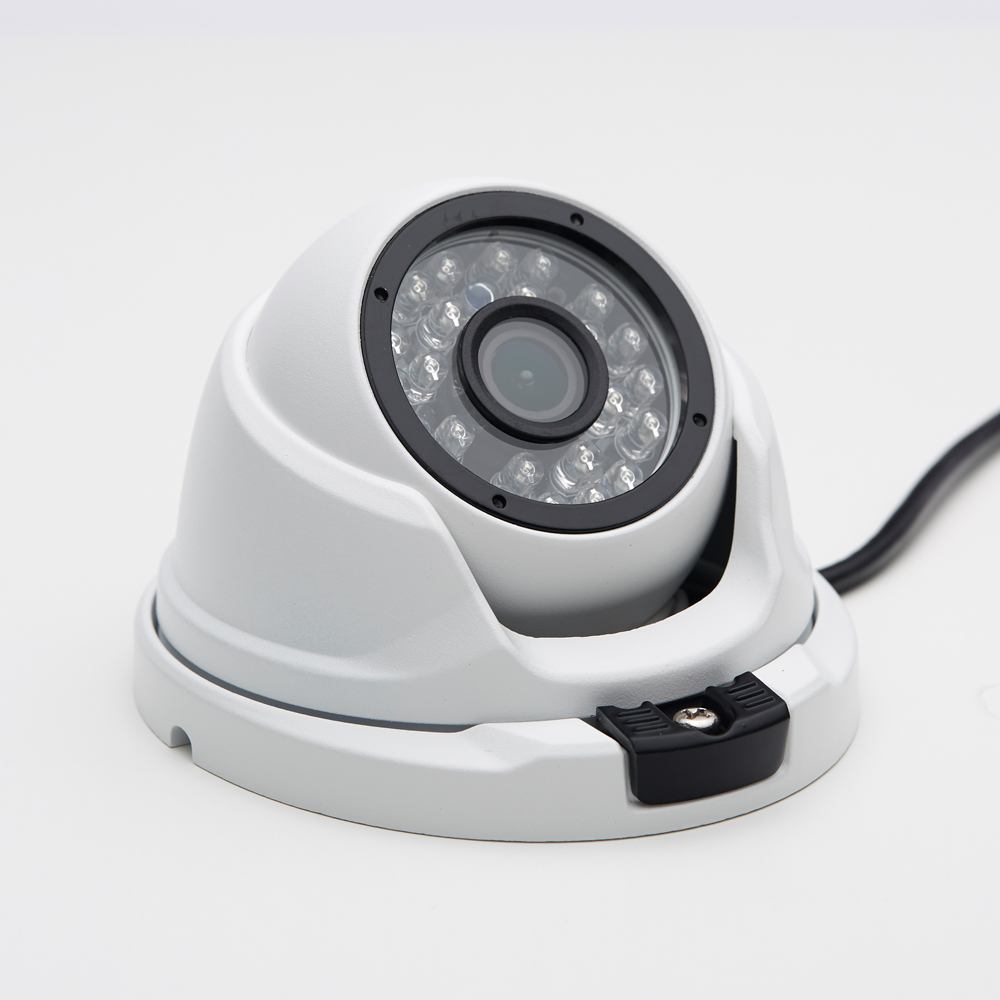

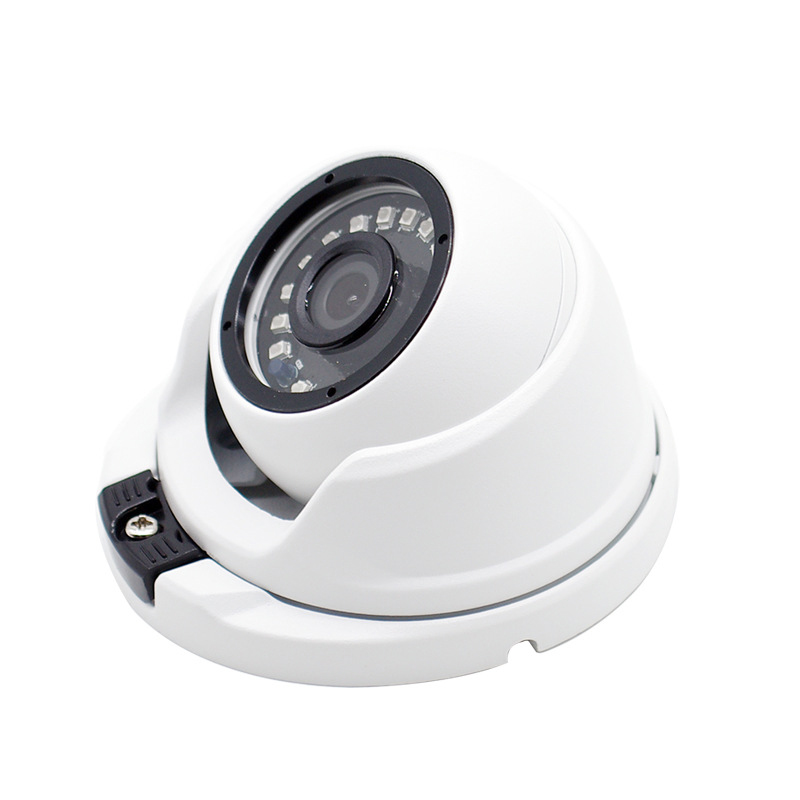

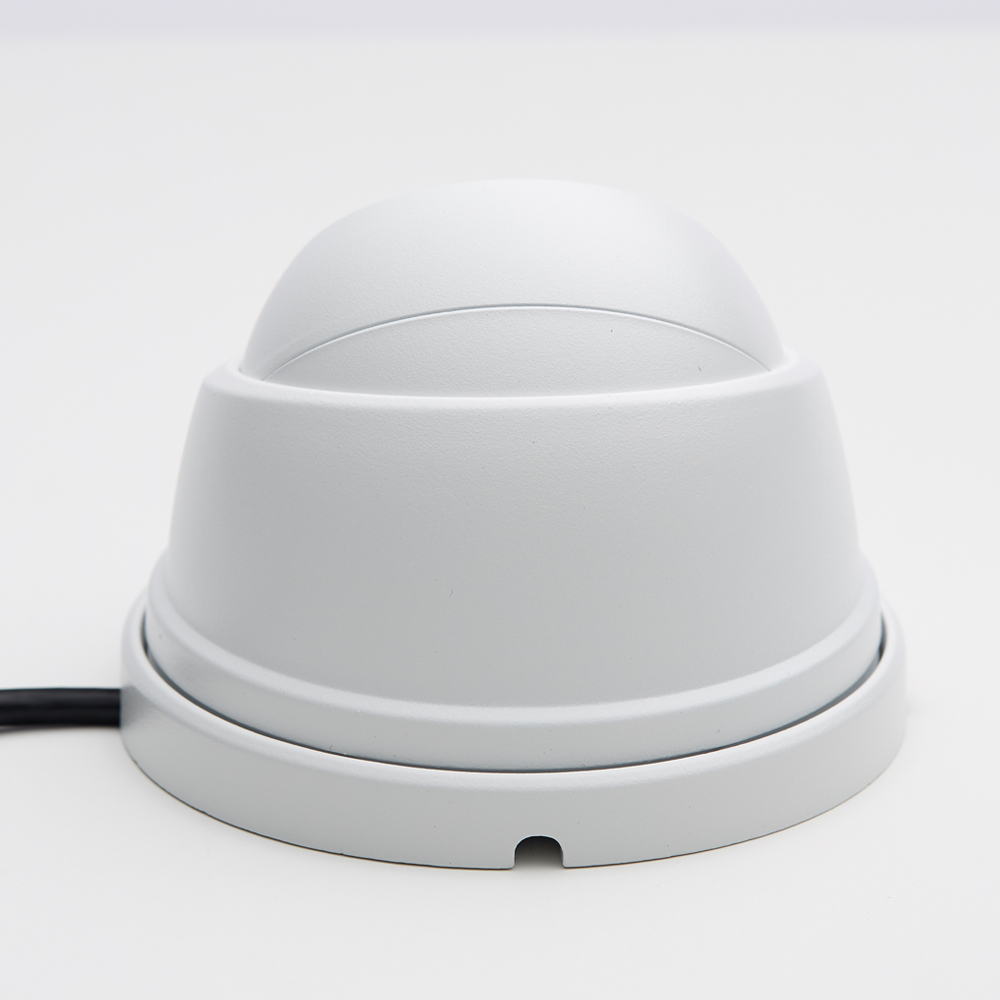

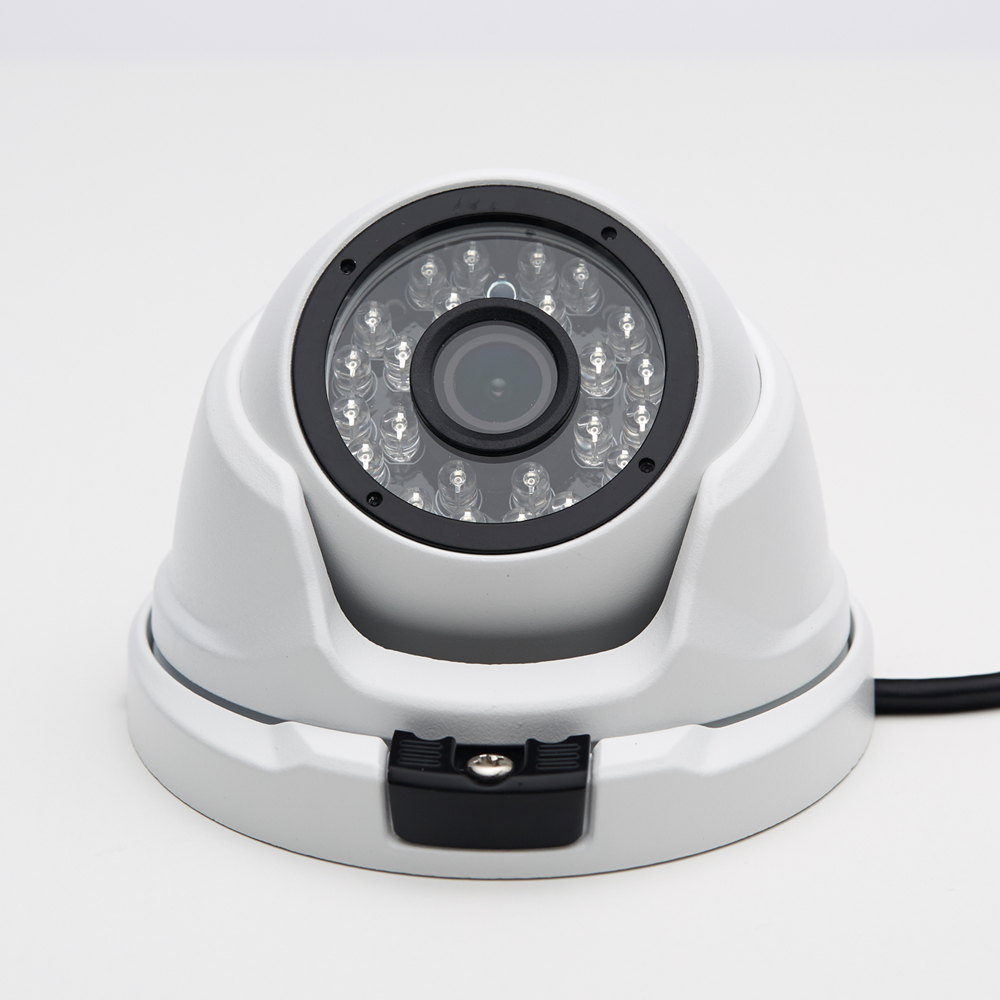

GN-VDH20-HD500





GN-VDH20-HD500


General Features:

HD 4 in 1 AHD Camera
Hybrid 4in1: AHD/TVI/CVI/CVBS
Resolution: 5MP
Lens: 2.8mm
IR Range: 20M
Outdoor IP66 Waterproof






Image Sensor

1/2.8" CMOS SONY IMX335+FH8538M

Resolution

5MP (2592x1944)

TV System

PAL / NTSC

Video Output Mode

Hybrid 4in1: AHD/TVI/CVI, CVBS 960H

Lens

2.8mm Wide Angle Lens

Day & Night

IR-CUT Auto

Infrared LED

Φ5 IR-LED*24pcs (SDM IR LED*18pcs is optional)

Infrared Range

20M

Low illumination

0.01Lux @F1.6,  0 Lux with IR LED on

OSD Menu

Support Multi Language OSD Menu

Other Functions

D-WDR, 3D-NR, Auto Gain Control, Auto White Balance

Waterproof Level

Al-Alloy Dome Housing, IP66 Waterproof

Working Temperature

-10℃~50, RH95% Max

Power Source

DC12V±10%,  400mA

Camera Size

Φ105x69(H)mm

Gross Weight

0.35Kg
