Model NO:
|
IPC-VDK30-XM200
|
IPC-VDK30-S200M
|
IPC-VDK30-ST200M
|
IPC-VDK30-E500M
|
|
Camera
|
|
Image CMOS Sensor
|
1/2.7" SC2235
|
1/2.9" IMX323
|
1/2.8" Starvis
IMX307
|
1/2.8" IMX335
|
|
DSP
|
XM530AI
|
HI3516E
|
HI3516E
|
Hi3516E V300
|
|
Resolution
|
2.0M Pixel
|
2.0M Pixel
|
2.0M Pixel
|
5.0M Pixel
|
|
Effective Pixels
|
1920(H)*1080(V)
|
2592(H)×1944(V)
|
|
Electronic Shutter
|
1/50-1/10000Sec
|
|
Motion Detection
|
Support
|
|
Scanning System
|
Progressive
|
|
Sync System
|
External
|
|
Privacy Masking
|
Support, Up to 4 areas
|
|
S/N Ratio
|
≥50dB
|
≥52dB
|
≥52dB
|
≥52dB
|
|
White Balance
|
Auto/Manual
|
|
Gain Control
|
Auto/Manual
|
|
Digital Noise Reduction
|
Support 2D/3D
|
|
Wide Dynamic Range
|
D-WDR
|
|
Recording Mode
|
NVR/NAS/CMS/Web
|
|
Video and Audio
|
|
Video Compression
|
H.265+
|
|
Video Output
|
Main stream:
1920*1080@20fps
|
Main stream:
1920*1080@20fps
|
Main stream:
1920*1080@20fps
|
Main stream:
2704×1950@20fps
|
|
Audio Processing
|
G.711,support bidrectional talk,audio&video synchronization
|
|
Audio interface
|
1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone
|
|
Alarm I/O
|
1/0 (support alarm input and video link to background)
|
|
Lens
|
|
Focal Length
|
2.8-12mm
|
|
Focus Control
|
Manual
|
|
Lens Type
|
Manual Zoom
|
|
Lens Pixels
|
2.0M Pixels
|
3.0M Pixels
|
5.0M Pixels
|
|
Auto Iris Support
|
N/A
|
|
Night Vision
|
|
Infrared LED
|
30cs Φ5 IR-LED, 25M IR Range
|
|
Low illumination
|
0.1Lux @F1.4
0 Lux with IR on
|
0.01Lux @F1.4
0 Lux with IR on
|
0.001Lux @F1.4
0 Lux with IR on
|
0.01Lux @F1.4
0 Lux with IR on
|
|
Day & Night
|
Support IR-CUT
|
|
Network
|
|
Ethernet
|
RJ-45 (10/100Base-T)1*RJ45 10/100M adaptive Ethernet port
|
|
Network Protocol
|
Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc
|
|
ONVIF
|
Support ONVIF
|
|
Smart Phone
|
Support iPhone, iPad, Android and Windows
|
|
Browser
|
Support IE, Chrome, Firefox, Safari
|
|
Sotware
|
Support iCloud, XMeye App(iOS，Android), CMS software, IE Login
|
|
POE
|
48V POE is optional
|
|
General
|
|
Housing
|
Al-Alloy, White Color Housing
|
|
Power Supply
|
DC12V/300mA input
|
|
Working Temperature
|
-10℃～50℃
|
|
Weatherproof Std.
|
Support Waterproof, IP65
|
|

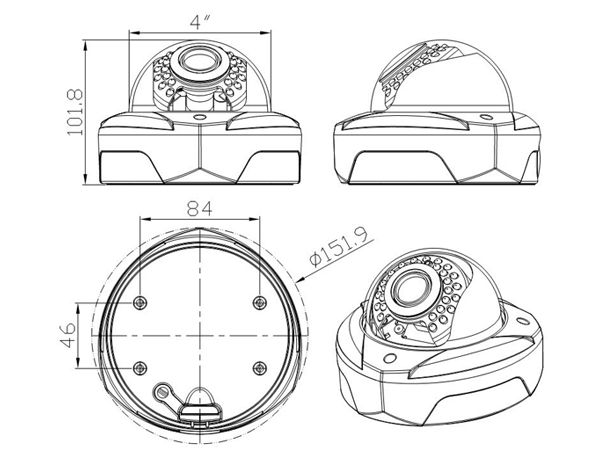

Dimension
|
Φ151.9x101.8(H) mm
|
|
Gross Weight
|
1.1Kg
|
