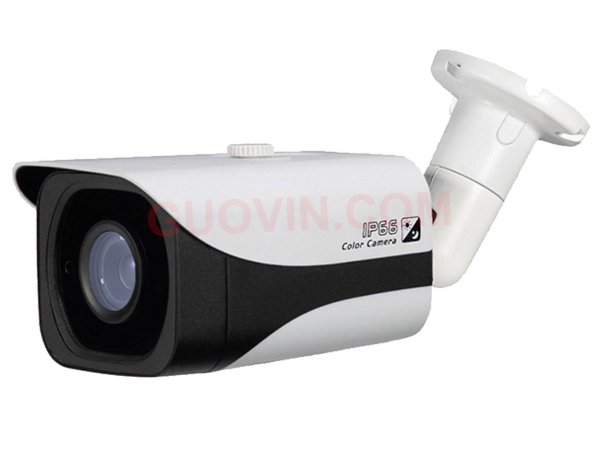

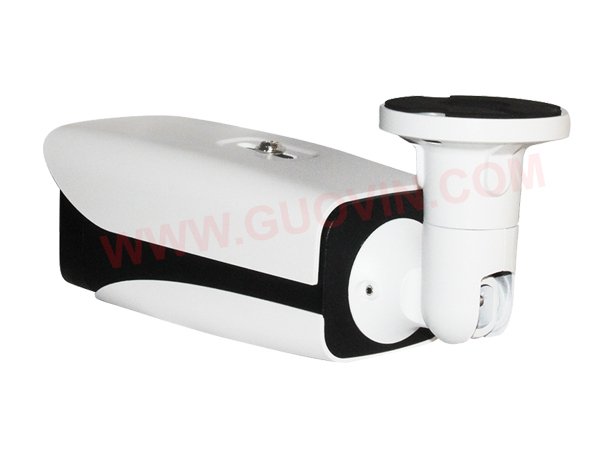

IPC-VBK70 Cámara IP





IPC-VBK70 Cámara IP


General Features:

Network Bullet Zoom Camera
Resolution: 2MP 5MP 8MP
2.8-12mm Manual Zoom Lens
4pcs Array IR LED, 40-50M IR Range
Al-Alloy Housing, IP66






Model NO:

IPC-VBK70-XM200

IPC-VBK70-S200M

IPC-VBK70-ST300M

IPC-VBK70-E500M

IPC-VBK70-S800M

Camera

Image CMOS Sensor

1/2.7" SC2235

1/2.9" IMX323

1/2.8" Starvis
IMX307

1/2.8" IMX335

1/2.8" IMX415

DSP

XM530AI

HI3516E

HI3516E

Hi3516E V300

Hi3516A

Resolution

2.0M Pixel

2.0M Pixel

2.0M Pixel

5.0M Pixel

4K / 8.0M Pixel

Effective Pixels

1920(H)*1080(V)

2592(H)×1944(V)

2592(H)×1944(V)

Electronic Shutter

1/50-1/10000Sec

Motion Detection

Support

Scanning System

Progressive

Sync System

External

Privacy  Masking

Support, Up to 4 areas

S/N Ratio

50dB

52dB

52dB

52dB

52dB

White Balance

Auto/Manual

Gain Control

Auto/Manual

Digital Noise Reduction

Support 2D/3D

Wide Dynamic Range

D-WDR

Recording Mode

NVR/NAS/CMS/Web

Video and Audio

Video Compression

H.265+

Video Output

Main stream:
1920*1080@20fps

Main stream:
1920*1080@20fps

Main stream:
1920*1080@20fps

Main stream:
2704×1950@20fps

Main stream:
3840×2160@15fps

Audio Processing

G.711,support bidrectional talk,audio&video synchronization

Audio interface

1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone

Alarm I/O

1/0 (support alarm input and video link to background)

Lens

Focal Length

2.8-12mm

Focus Control

Manual

Lens Type

Manual Zoom

Lens Pixels

2.0M Pixels

3.0M Pixels

5.0M Pixels

Auto Iris Support

N/A

Night Vision

Infrared LED

4pcs Array IR-LED, 40M IR Range

Low illumination

0.1Lux @F1.4
0 Lux with IR on

0.01Lux @F1.4
0 Lux with IR on

0.001Lux @F1.4
0 Lux with IR on

0.01Lux @F1.4
0 Lux with IR on

0.01Lux @F1.4
0 Lux with IR on

Day & Night

Support IR-CUT

Network

Ethernet

RJ-45 (10/100Base-T)1*RJ45 10/100M adaptive Ethernet port

Network Protocol

Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc

ONVIF

Support ONVIF

Smart Phone

Support iPhone, iPad, Android and Windows

Browser

 Support IE, Chrome, Firefox, Safari

Sotware

Support iCloud,  XMeye App(iOSAndroid),  CMS software, IE Login

POE

48V POE is optional

General

Housing

Al-Alloy, White+Black Color Housing

Power Supply

DC12V/600mA input

Working Temperature

  -10℃~50

Weatherproof Std.

Support Waterproof, IP66

Dimension

312(W) x85(H) x85(D)mm

Gross Weight

0.96Kg
