GN-HAU60-S Series





GN-HAU60-S Series


General Features:


Warm Light Camera Full Color in Night Vision4 IN 1

Support AHD/TVI/CVI/CVBS

Resolution: 2MP/8MP

AlAlloy Housing, IP66

4mm Starvis Lens

4pcs Warm Light LED, 20M IR Range







Camera

Model NO.

GN‐HAU60‐GC200S

GN‐HAU60‐GC500S

Image Sensor

GC2053 (1/2.9"  CMOS Sensor)

C18(1/2.7"  CMOS Sensor)

DSP

FH8536H

FH8538E

Image Resolution

1080P

5MP

Effective Pixels

1920(H)x1080(V)

2704(H)x1950(V)

TV System

PAL / NTSC

Electronic Shutter

1/25s~1/50,000s , 1/30s~1/60,000s

Sync System

Internal

Usable Illumination

0.01Lux

S/N Ratio

52dB

Scanning System

Progressive Scan

Video Output

4 IN 1,  AHD/TVI/CVI: 1080P,  CVBS 960H

Lens

Focus Length

4mm (F1.4  Starvis)

Focus Control

Fixed

Lens Type

M12

Night
Vision

 LED

4pcs Warm Light LED

Distance

15-20M

LED Status

Under 10 Lux by CDS

LED Power On

CDS Auto Control

Day/Night

Auto (ICR) / Color / B&W

Camera Features

OSD Menu

Yes, support OSD menu

OSD Menu Language

EN, CN, ES, FRA, IT, RU, PT, JPN, KR

White Balance

Auto/Manual

Gain Control

Auto

Noise Reduction

3D NR

WDR

D-WDR

Picture Adjustment

Yes

General

Camera Housing

Al-Alloy, IP66 Waterproof

Operation Temperature

-10 ~ +50 RH95% Max

Storage Temperature

-20 ~ +60 RH95% Max

Power Source

DC12V±10%,  1000mA

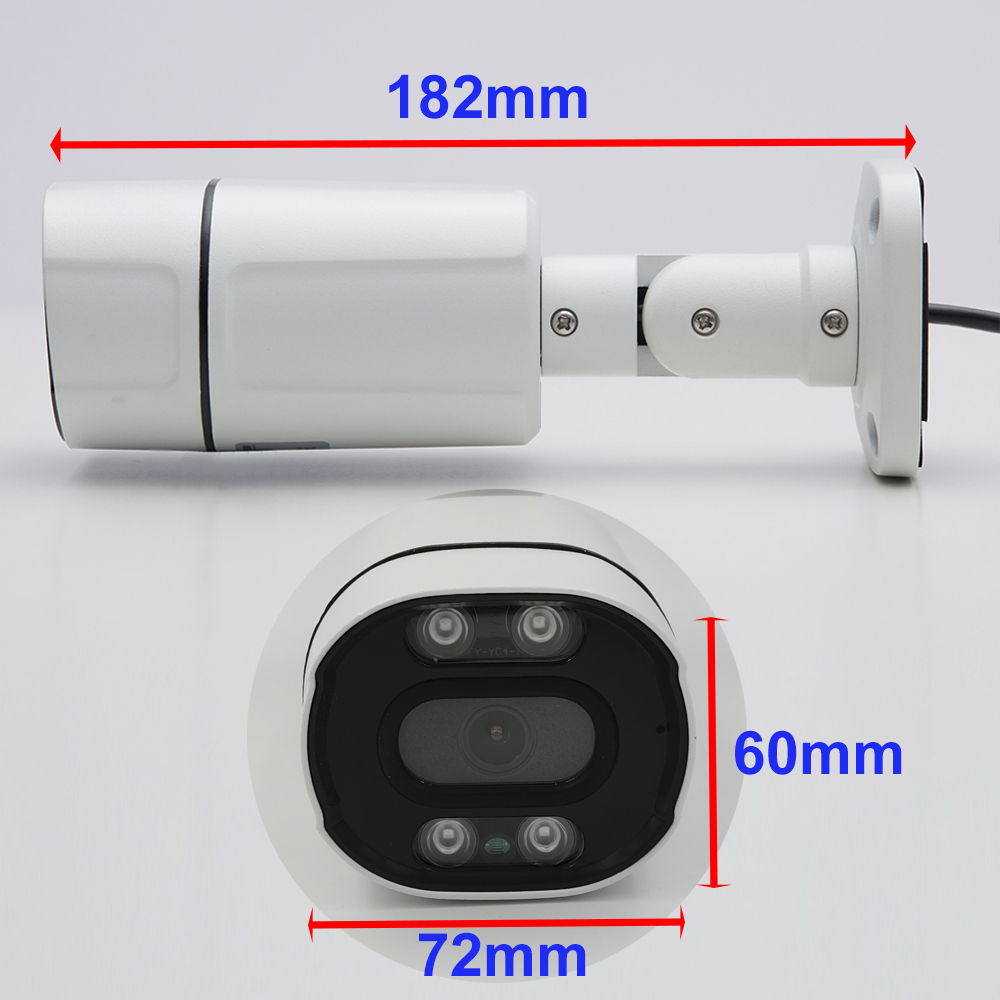

Dimension

 182(W) x72(H) x60(D)mm

Gross Weight

0.39Kg   (Volumn Weigh By Air is 0.6Kg)
