GN-HAK60-W500CH





GN-HAK60-W500CH


General Features:

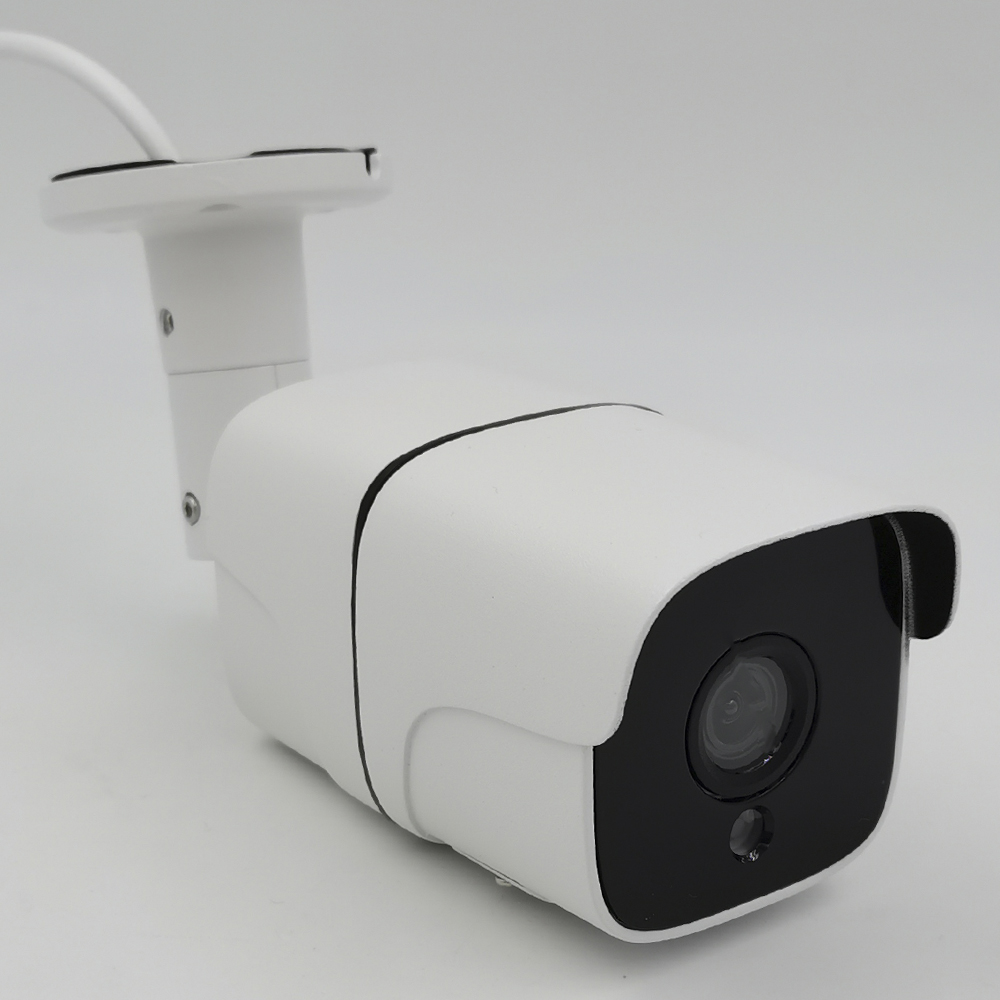

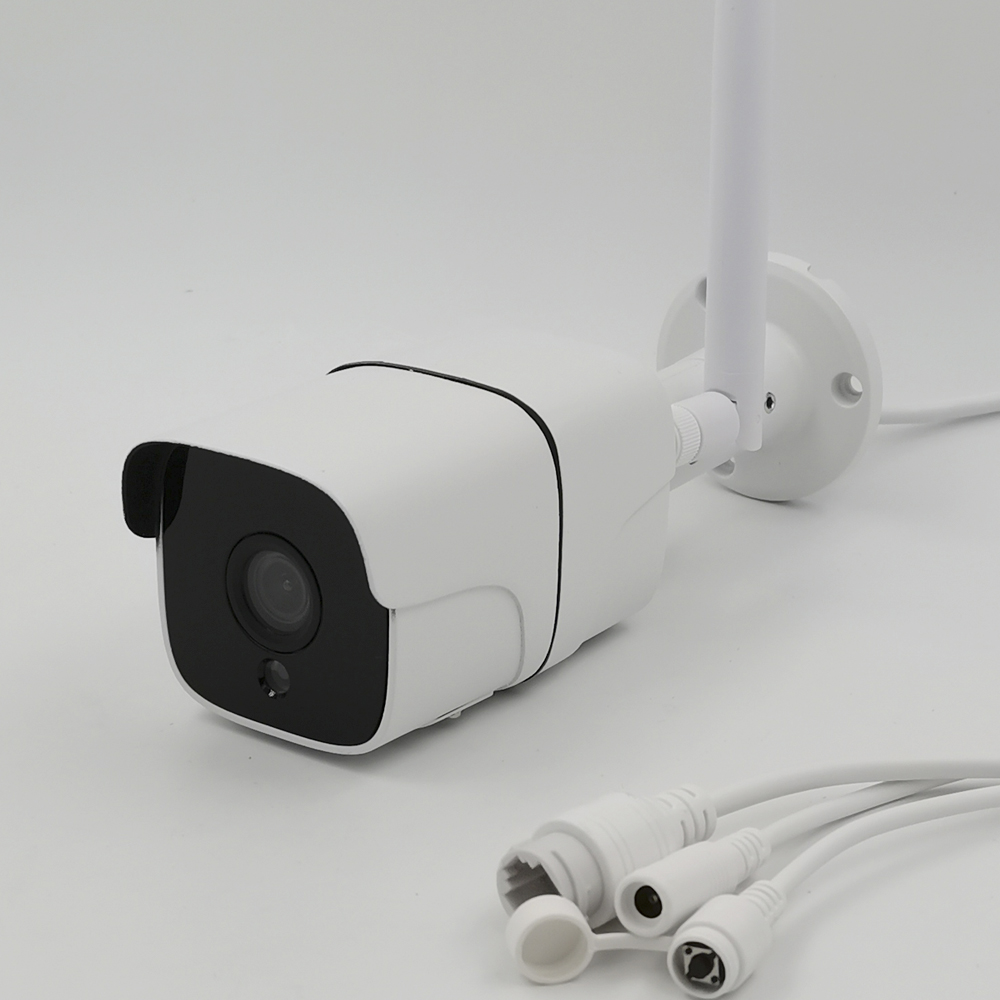

5MP WiFi Bullet Camera
3.6mm Lens
25M IR Range
SD card video storage
APP: CamHipro
Waterproof IP66






Chipset + System

Sensor + Processor

1/2.8" CMOS SONY IMX335

Video

Resolution

5MP

Video Compression

H.265

Alarm Detection

Motion Detection and Human Shape Detection

Picture Capture

Support

Lens

Camera lens

3.6mm

Night Vision

Infrared LED

18 SMD IR LED,  IR Range: 25M

Low illumination

0.1Lux @F2.0,   0 Lux with IR on

Day & Night

IR-CUT Fliter Auto

Audio

Coding standard

G.711

Audio

One-Way Audio,  with Built-in Microphone

Record management

Video file size

2.5GB-4.5GB/Day

Record Mode

Manual record, Motion Detection record, Scheduled record, Alarm record

Video storage

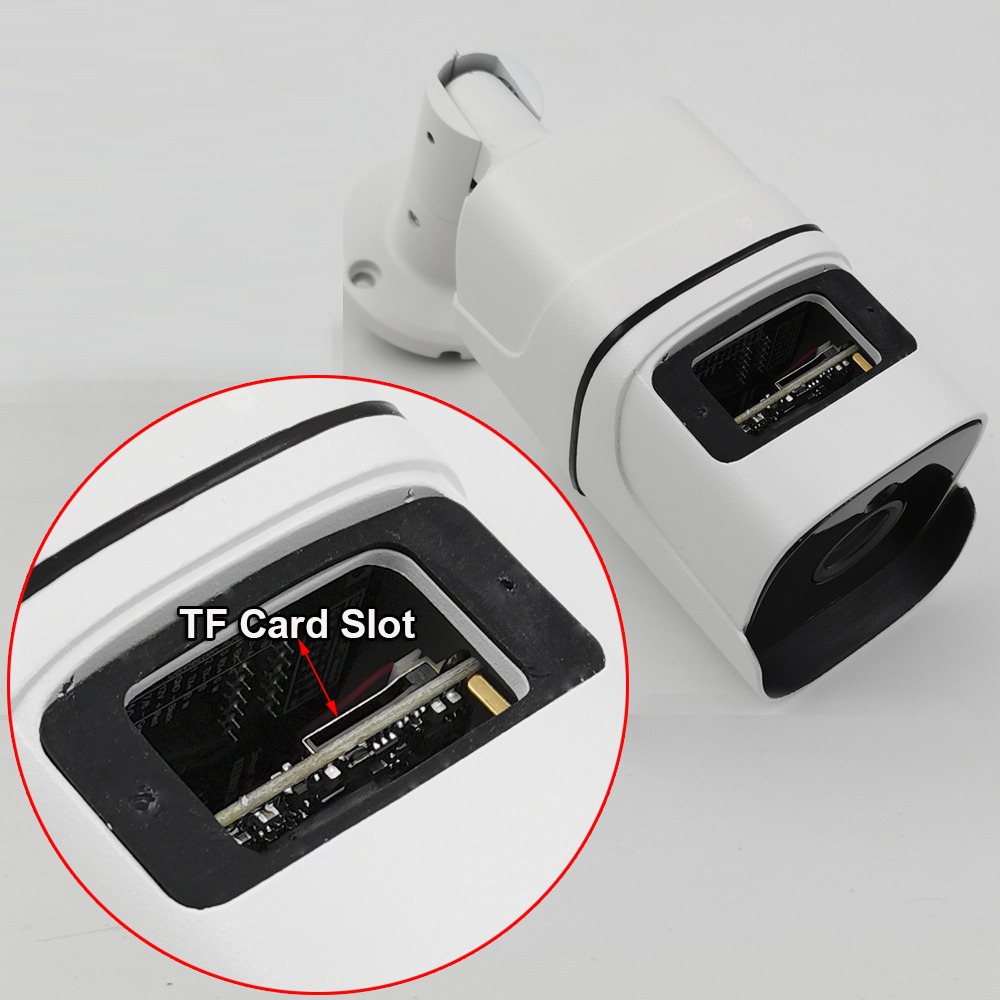

Video Storage by NVR, Video Storage by TF Card

Playback, back up

Support

Alarm trigger

Video PushAlarm recordingscreen shot capture ,sending Email

Network

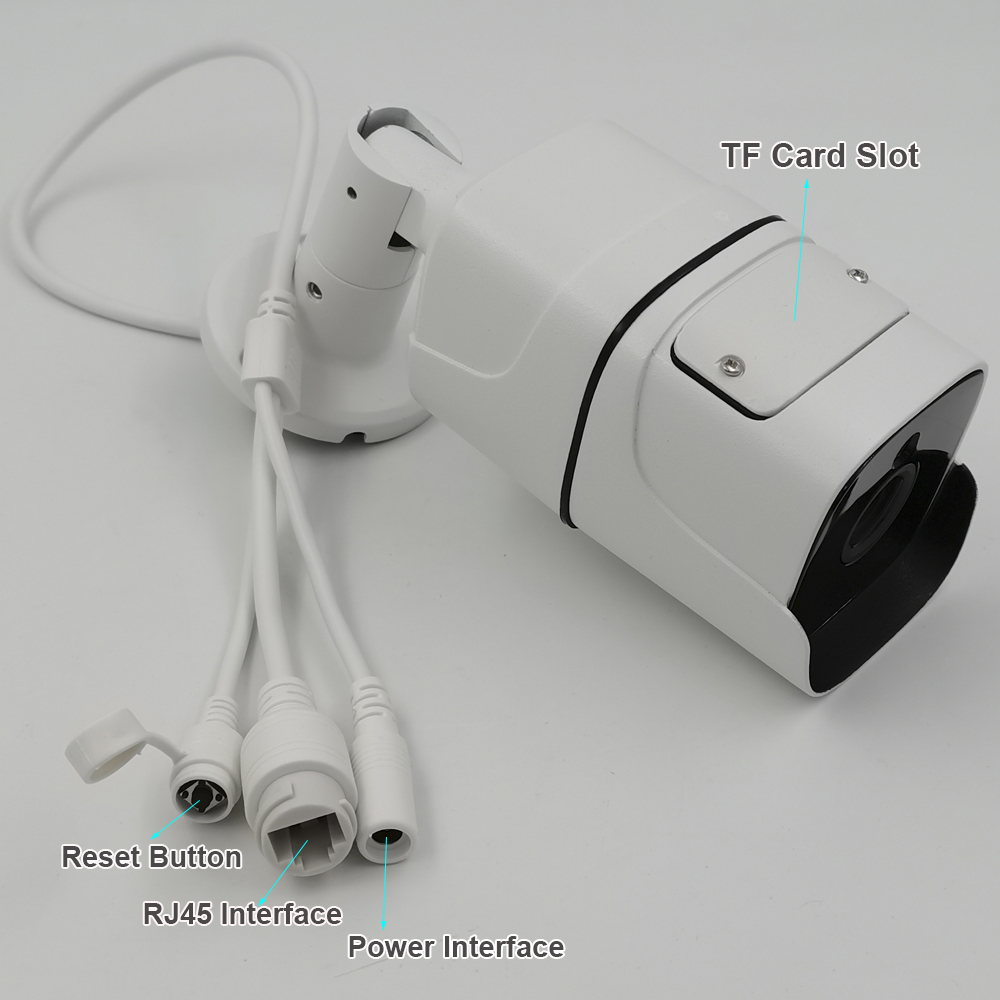

Network Interface

1*RJ45 , 10/100M10-100 Base-T,  self-adaptable Ethernet port

Mobile IOS/Android

APP:  CamHi  &  CamHipro

WiFi standard

802.11b/g/n

Network Protocol

Support TCP/IPUDP/IPHTTPICMPFTPEMAILTELNET, etc

Transmission mode

P2PSmart Cloud Sever

WIFI connection

WiFi connectionAP Hotspot

Power Supply

Power

DC 12V/500mA

Power consumption

< 6W

General

Waterproof

Al-Alloy Housing, IP66 waterproof

Installation mode

Flat putWall mountedHoisting

Working Temperature

-10℃-+55

Working humidity

10%90%

Product size

195 x60 x60mm
