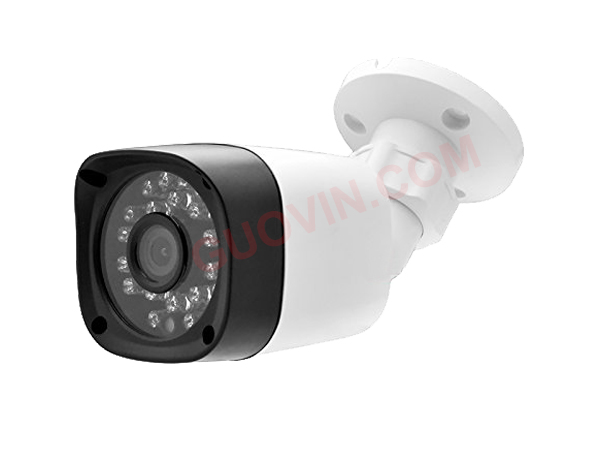

GN-VKL50- Cámara AHD





GN-VKL50- Cámara AHD


General Features:

HD 4 IN 1 Cámara Bullet
Support AHD/TVI/CVI/CVBS
Resolution: 2MP / 5MP / 8MP
Plastic IP66 Housing
3.6mm Fixed Lens
24pcs Φ5 IR LED, 20M IR Range






Camera

Model NO.

GN-VKL50-XM200

GN-VKL50-FH200E

GN-VKL50-HD200

GN-VKL50-FH500

GN-VKL50-SY500

GN-VKL50-SY800

Image Sensor

SC2235P
(1/2.9" CMOS)

F37
(1/2.9" CMOS)

SONY IMX323
(1/2.9" CMOS)

K05
(1/2.5" CMOS)

SONY IMX335
(1/2.8" CMOS)

SONY 415
(1/2.8" CMOS)

DSP

XM330

FH8536H

FH8536E

FH8538M

FH8538M

FH8556

Image Resolution

1080P

1080P

1080P

5MP

5MP

8MP

Effective Pixels

1920(H)x1080(V)

1920(H)x1080(V)

1920(H)x1080(V)

2704(H)x1950(V)

2704(H)x1950(V)

3840(H)x2160(V)

TV System

PAL / NTSC

Electronic Shutter

1/25s~1/50,000s , 1/30s~1/60,000s

Sync System

Internal

Usable Illumination

0.3Lux

0.3Lux

0.01Lux

0.3Lux

0.01Lux

0.1Lux

S/N Ratio

50dB

50dB

52dB

50dB

52dB

52dB

Scanning System

Progressive Scan

Video Output

4 IN 1,  AHD/TVI/CVI/CVBS

Lens

Focus Length

Fixed 3.6mm

Fixed 4mm

Fixed 3.6mm

Focus Control

Fixed

Lens Type

M12

Night
Vision

Infrared LED

24pcs Φ5 IR-LED

Infrared Distance

20M

IR Status

Under 10 Lux by CDS

IR Power On

CDS Auto Control

Day/Night

Auto (ICR) / Color / B&W

Camera Features

OSD Menu

Yes

OSD Menu Language

EN, CN, ES, FRA, IT, RU, PT

White Balance

Auto/Manual

Auto/Manual

Auto/Manual

Auto/Manual

Auto/Manual

Auto/Manual

Gain Control

Auto

Auto

Auto

Auto

Auto

Auto

Noise Reduction

3D NR

3D NR

3D NR

2D NR

3D NR

3D NR

WDR

DWDR

DWDR

DWDR

DWDR

DWDR

DWDR

Picture Adjustment

Yes

Yes

Yes

Yes

Yes

Yes

General

Camera Housing

Plastic Housing, IP66

Operation Temperature

-10 ~ +50 RH95% Max

Storage Temperature

-20 ~ +60 RH95% Max

Power Source

DC12V±10%,  400mA

Dimension

198(W) x65(H) x65(D)mm

Gross Weight

0.26Kg
